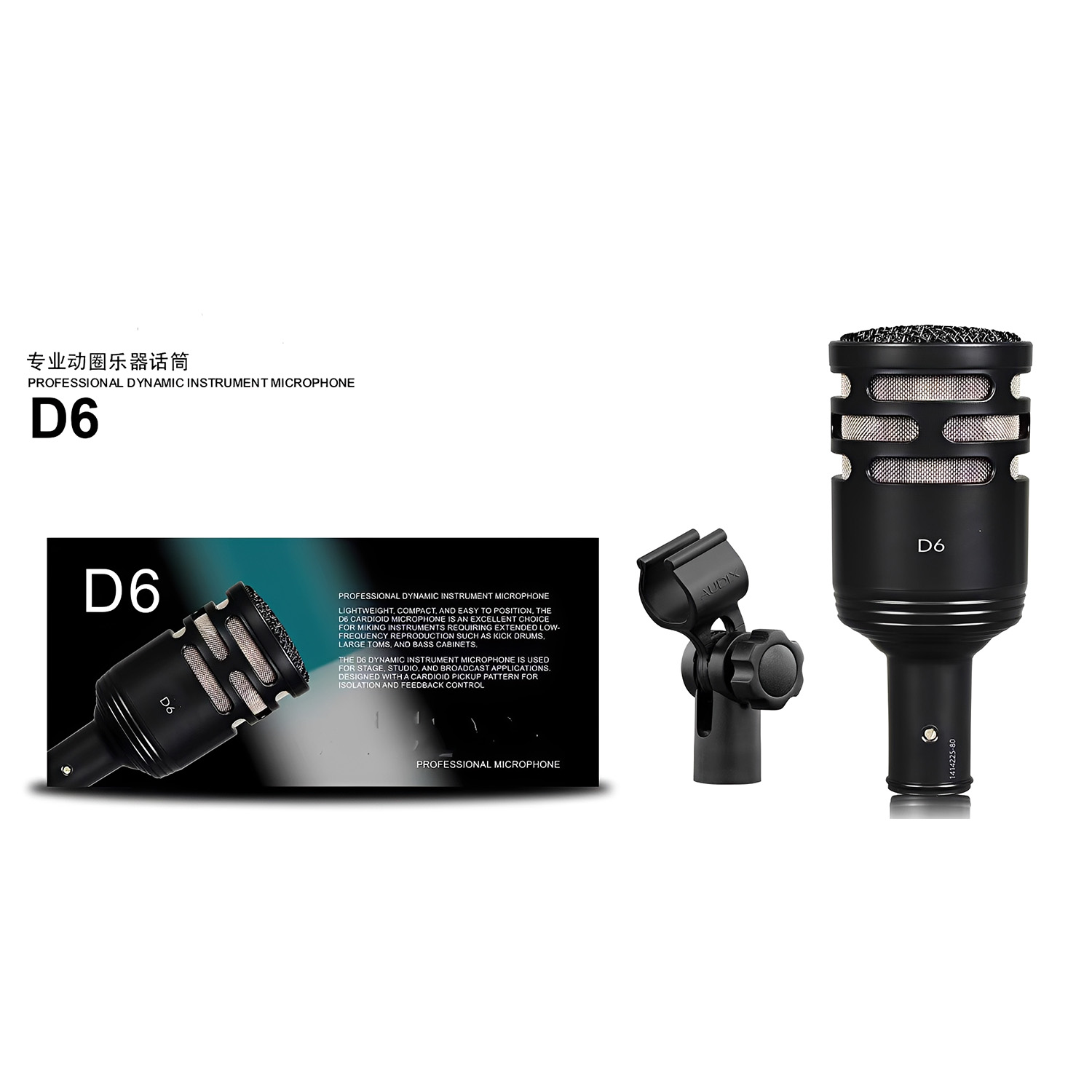

D6
Transducer Type: Dynamic
Frequency Response: 30 Hz - 15 kHz
Polar Pattern: Cardioid
Output Impedance: 280 ohms
Sensitivity: 0.8 mV / Pa @ 80 Hz
Capsule Technology: VLM Type E
Off Axis Rejection: >20 dB
Maximum SPL: ≥144 dB
Power Requirements: None
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm
produces positive voltage on
pin 2 relative to pin 3 of output
XLR connector
Materials / Finish: Machined Aluminum / Black
Finish

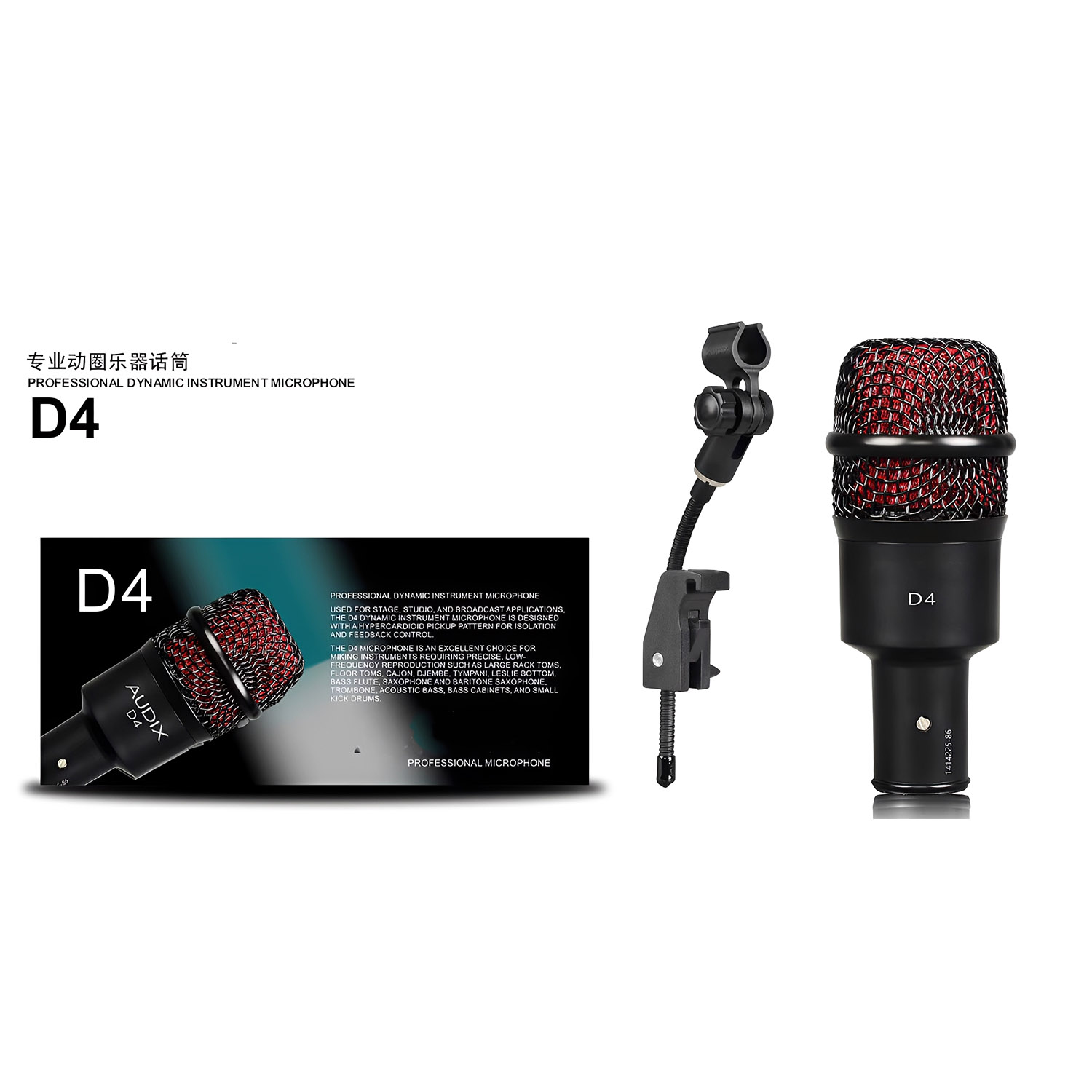

D4
Transducer Type: Dynamic
Frequency Response: 40 Hz - 18 kHz
Polar Pattern: Hypercardioid
Output Impedance: 280 ohms
Sensitivity: 1.4 mV / Pa @ 1k
Capsule Technology: VLM Type D
Off Axis Rejection: >20 dB
Maximum SPL: ≥144 dB
Power Requirements: None
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm
produces positive voltage on
pin 2 relative to pin 3 of output
XLR connector
Materials / Finish: Black Hard Coat

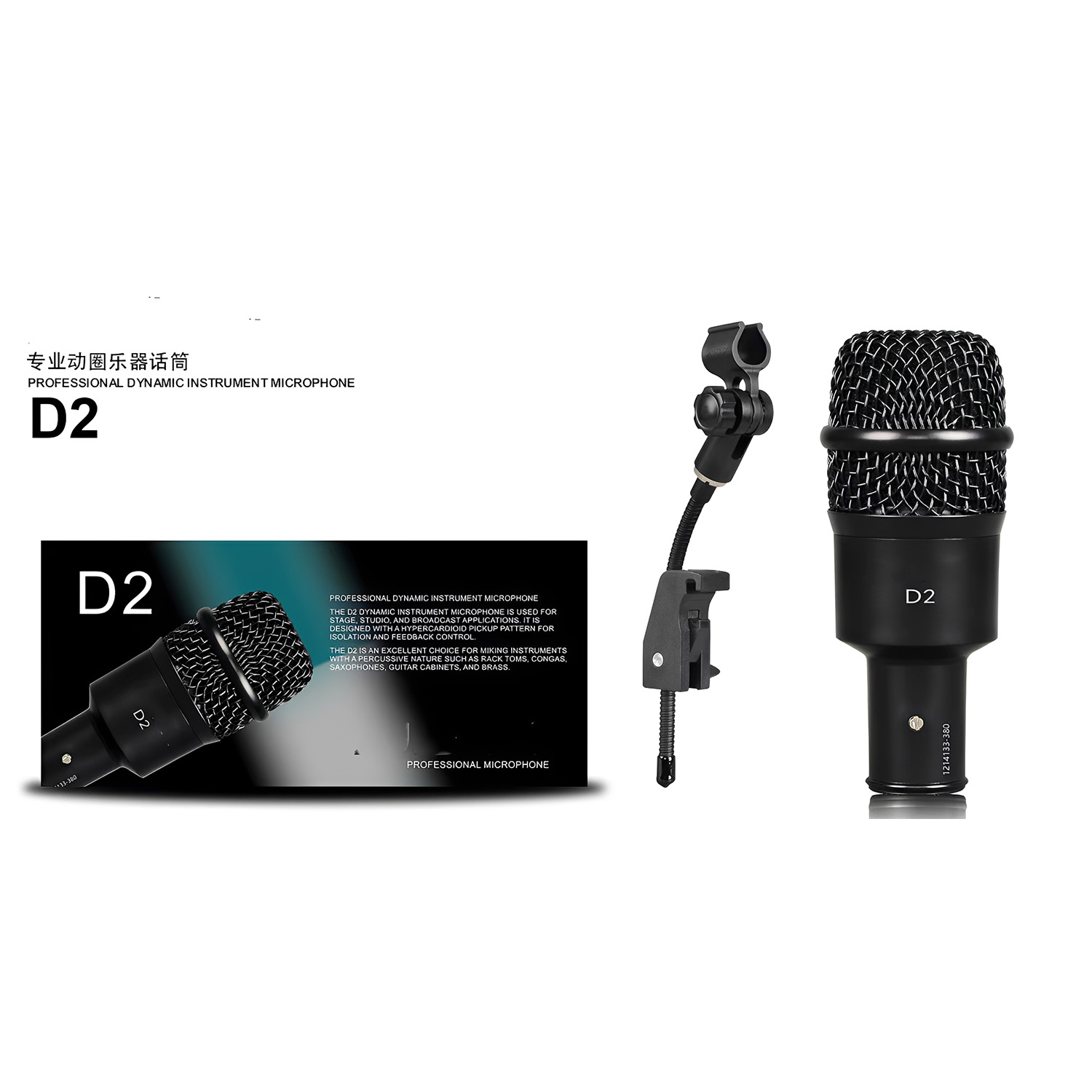

D2
Transducer Type: Dynamic
Frequency Response: 68 Hz - 18 kHz
Polar Pattern: Hypercardioid
Output Impedance: 280 ohms
Sensitivity: 1.2 mV / Pa @ 1k
Capsule Technology: VLM Type B
Off Axis Rejection: >30 dB
Maximum SPL: ≥144 dB
Power Requirements: None
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm
produces positive voltage on
pin 2 relative to pin 3 of output
XLR connector
Materials / Finish: Black Hard Coat
SCX1
Transducer Type: Condenser
Frequency Response: 40 Hz - 20 kHz
Polar Pattern: Cardioid / Hypercardioid / Omni
Output Impedance: 200 ohms
Sensitivity: 26 (C) | 17 (HC) | 15 (O)
mV / Pa @ 1k
Equivalent Noise Level: 14 dB (A-weighted)
Signal to Noise Ratio: 80 dB
Maximum SPL: ≥130 dB
Dynamic Range: 116 dB
Power Requirements: 48-52 V phantom
Connector: 3-pin XLRm
Polarity: Positive pressure on diaphragm
produces positive voltage on
pin 2 relative to pin 3 of output
XLR connector
Materials / Finish: Machined Brass / Black Finish
i5
Transducer Type Dynamic
Frequency Response 50 Hz – 16 kHz
Polar Pattern Cardioid
Output Impedance 280 ohms
Sensitivity 1.6 mV / Pa @ 1k
Capsule Technology VLM Type B
Off-Axis Rejection >23 dB
Maximum SPL ≥140 dB
Power Requirements None
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Zinc Alloy / Black Finish

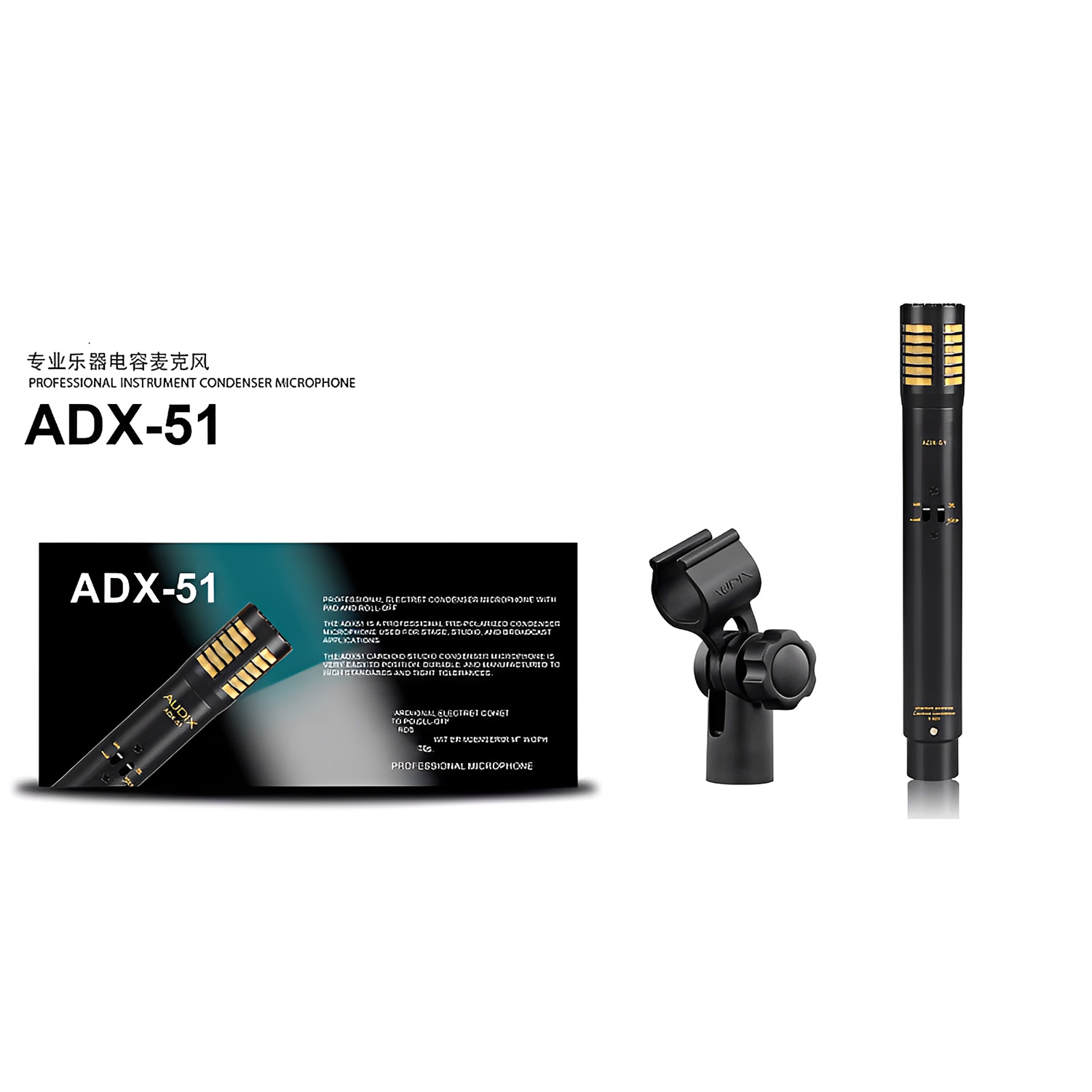

ADX51
Transducer Type Pre-Polarized Condenser
Frequency Response 40 Hz – 18 kHz
Polar Pattern Cardioid
Output Impedance 100 ohms
Sensitivity 17 mV / Pa @ 1k
Capsule Technology Black Electret GV Diaphragm
Off-Axis Rejection >15 dB
Maximum SPL ≥132 dB
Power Requirements 9-52 V Phantom
Connector 3-pin XLRm
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Materials / Finish Brass / Black Finish
