Product Description

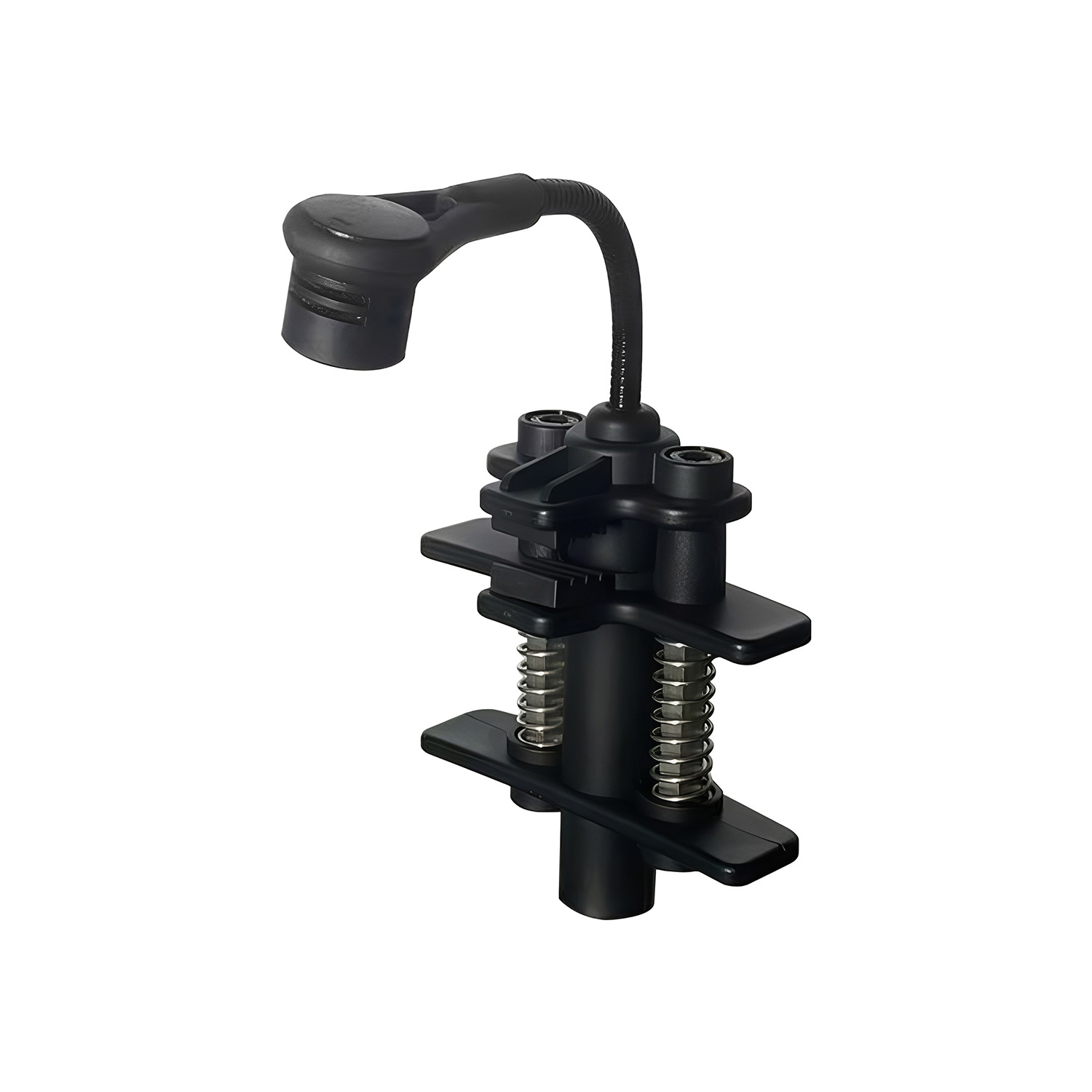

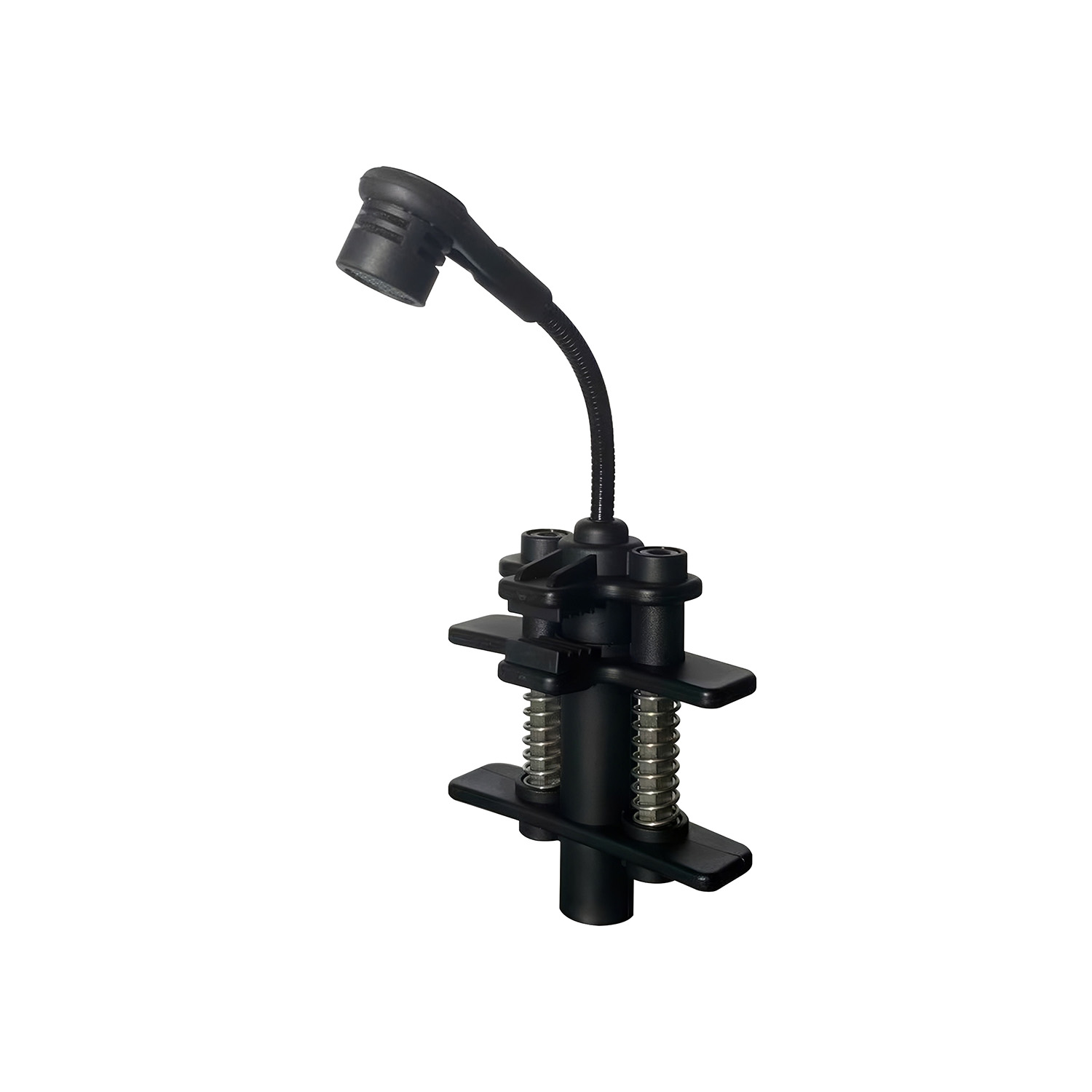

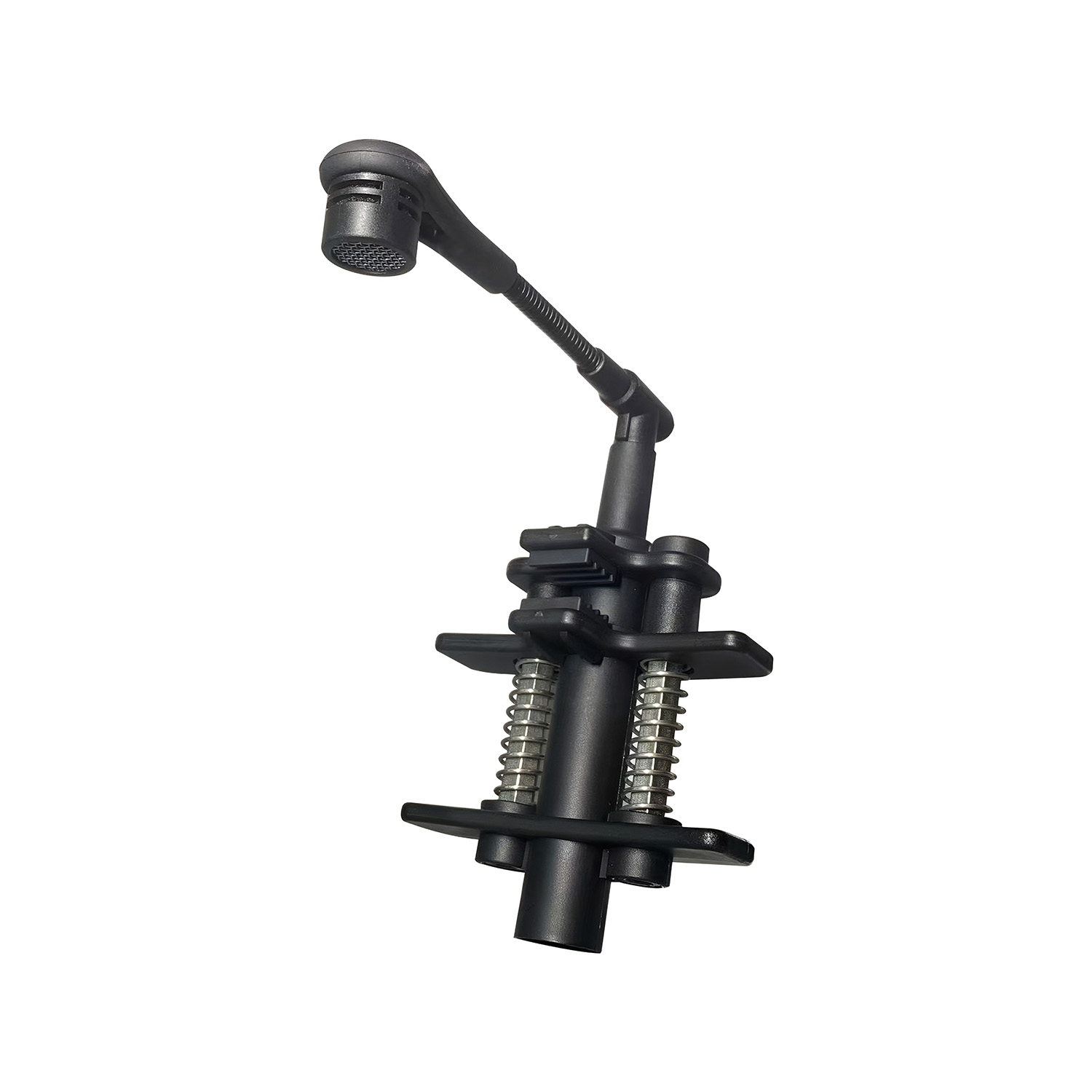

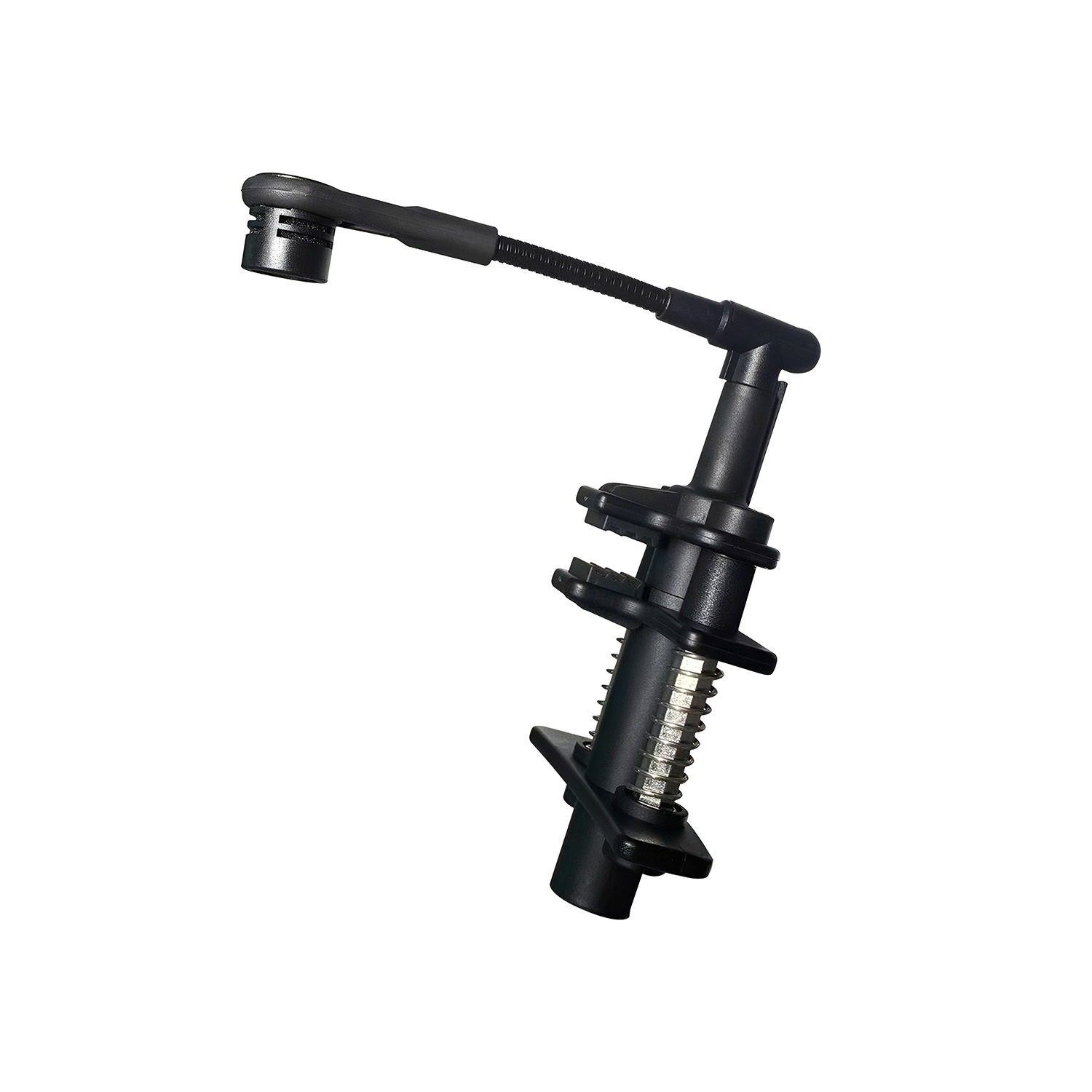

MODEL: TG D57 / TG D58
Transducer type ............... Condenser (back electret)
Operating principle....... ...... Pressure gradient
Polar pattern .................Cardioid
Frequency response:Close miking. ...............20-20,000Hz
Distant miking (measured at 1 m). .35-20,000 Hz
Open circuit voltage ............ 5 mV/Pa (-37 dBV)±2.5 dB
Nominal impedance ............200 Ω
Load impedance............... l kΩ
Max.SPLat 24 V and 48 V phantom power . .. 140 dB
S/N ratio ....................59 dB [CCIR; Q-Peak]70 dB [A; RMS]
Equivalent SPL................35 dB [CCIR; Q-Peak]24 dB [A; RMS]
Power supply ................. Phantom power:P12;P24;P48 (recommended:48 V)
Connection...................XLR,3-pin,male
Gooseneck length ............20 mm

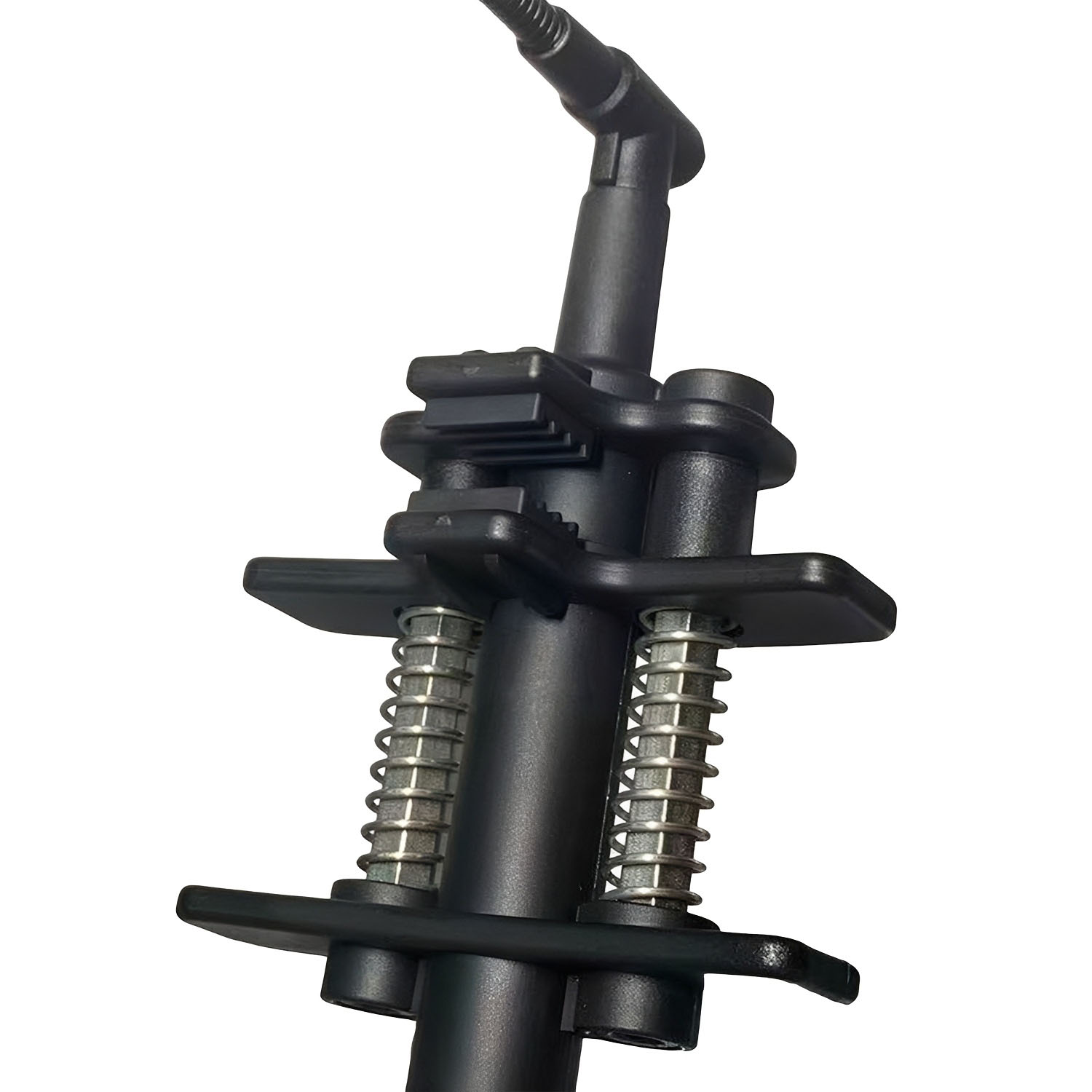

Dimensions:Clamp (Wx H) ..............TG D57: 85 x 78 mm / TG D58: 85 x 118 mm
Weight....................TG D57: approx.133g / TG D58: approx.142g
