Product Description

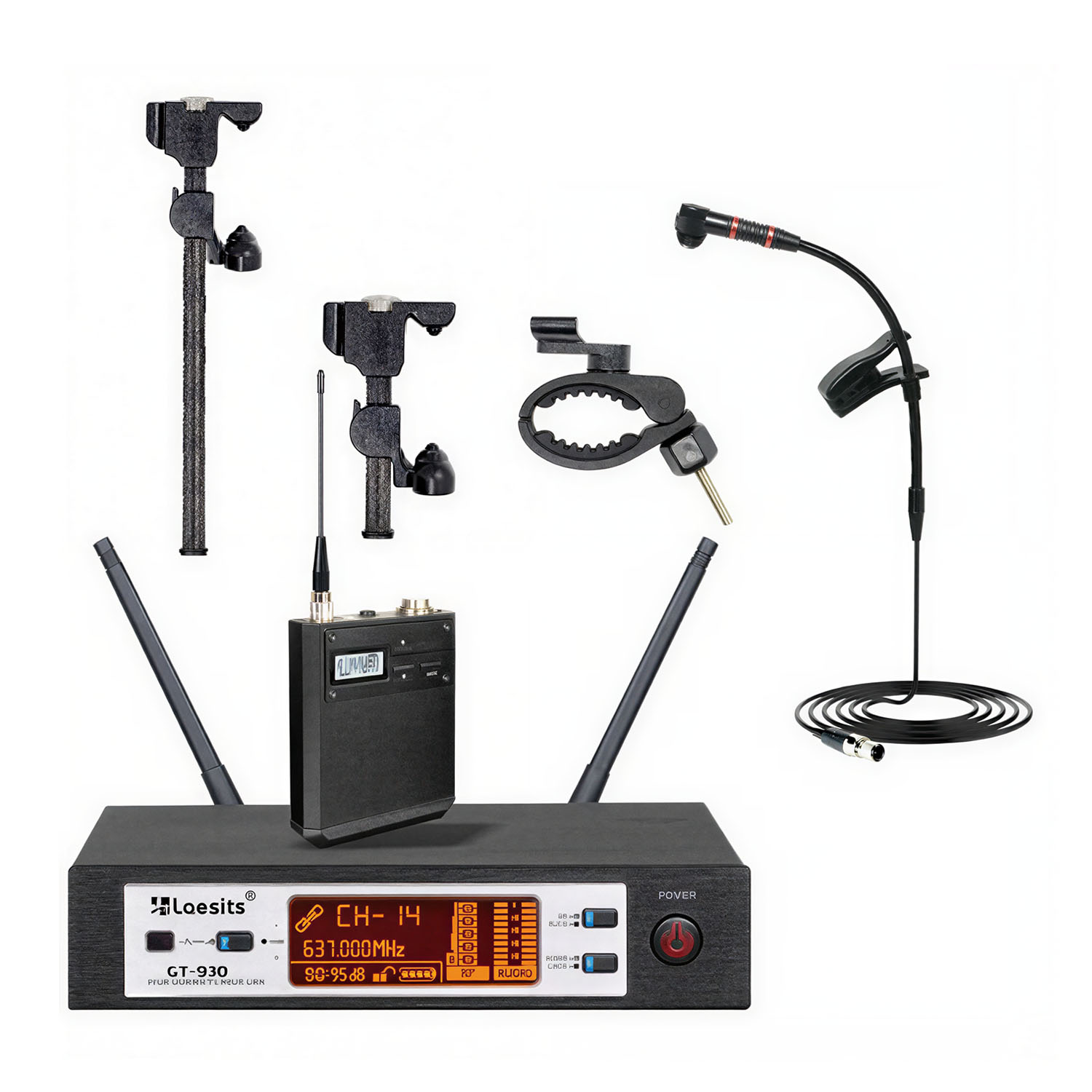

S163d four interchangeable clips (suitable for instruments such as saxophone, violin, cello, guitar, erhu, flute, xiao, lagenaria siceraria silk, etc.)
Receiver
Carrier Frequency Band: 615-665MHz Modulation Method: FM
Oscillation Method: PLL Phase Lock Frequency Synthesizer
Frequency Stability: ±0.0005%
Sensitivity: At an offset of 25KHz, with an input of 6dBμV, S/N>60dB
Maximum Deviation: ±45kHz
Bandwidth: 40MHz
Composite S/N Ratio: >108 dB
Composite T.H.D.: <0.4% @ 1 KHz
Composite Frequency Response: 65Hz~18kHz ± 3dB,
Maximum Output Voltage: Balanced: -20dBV/100Ω,
Unbalanced: -4dBV/5KΩ.
Output Socket: XLR Balanced and 6.3φ Unbalanced Sockets
Effective Working Distance: Generally 200 meters (open area)
Power Supply: 100 - 240V AC50/60 Hz, 10W
Transmitter
Carrier Frequency Band: 615-665MHz
Oscillation Mode: PLL Phase Lock Frequency Synthesizer
Harmonic Radiation: < -63dBm
Bandwidth: 80MHz
Maximum Deviation: ±45KHz
Power Output: 30mW
Frequency Response: 50Hz~18KHz
Maximum Input Sound Pressure: 130dB SPL
RF Power Output: 8mW; 8mW/15mW (Selectable)
Battery: AA×2
