PROFESSIONAL AUDIO · B2B SOURCING

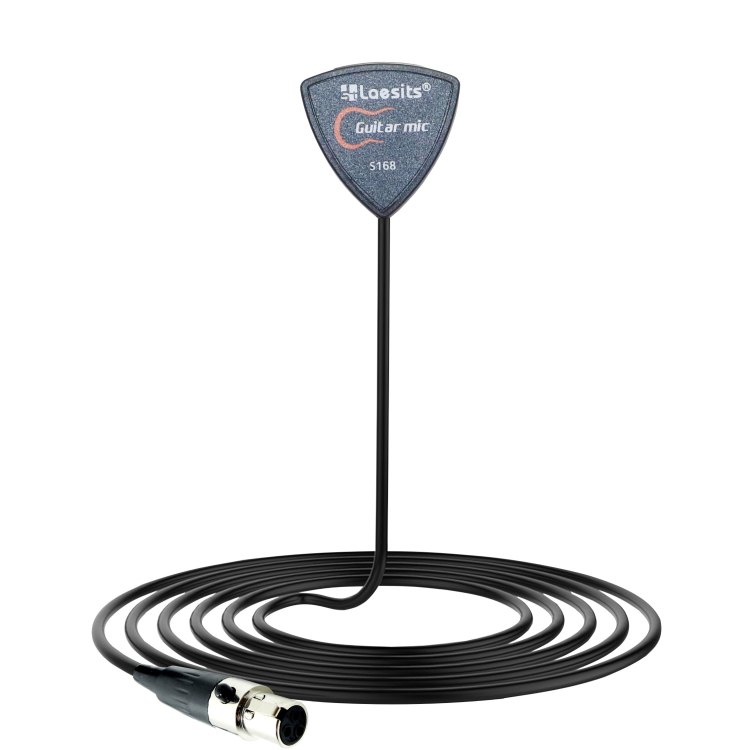

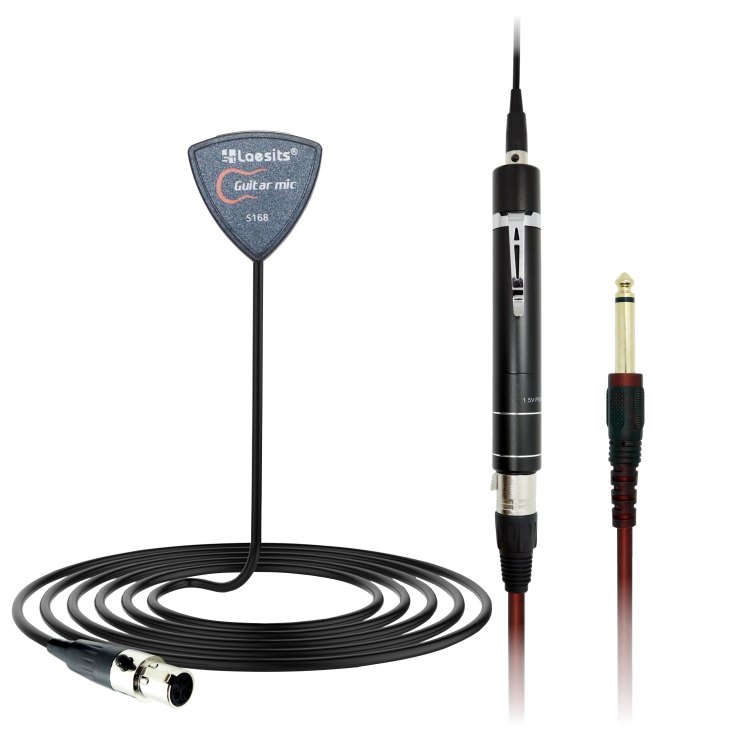

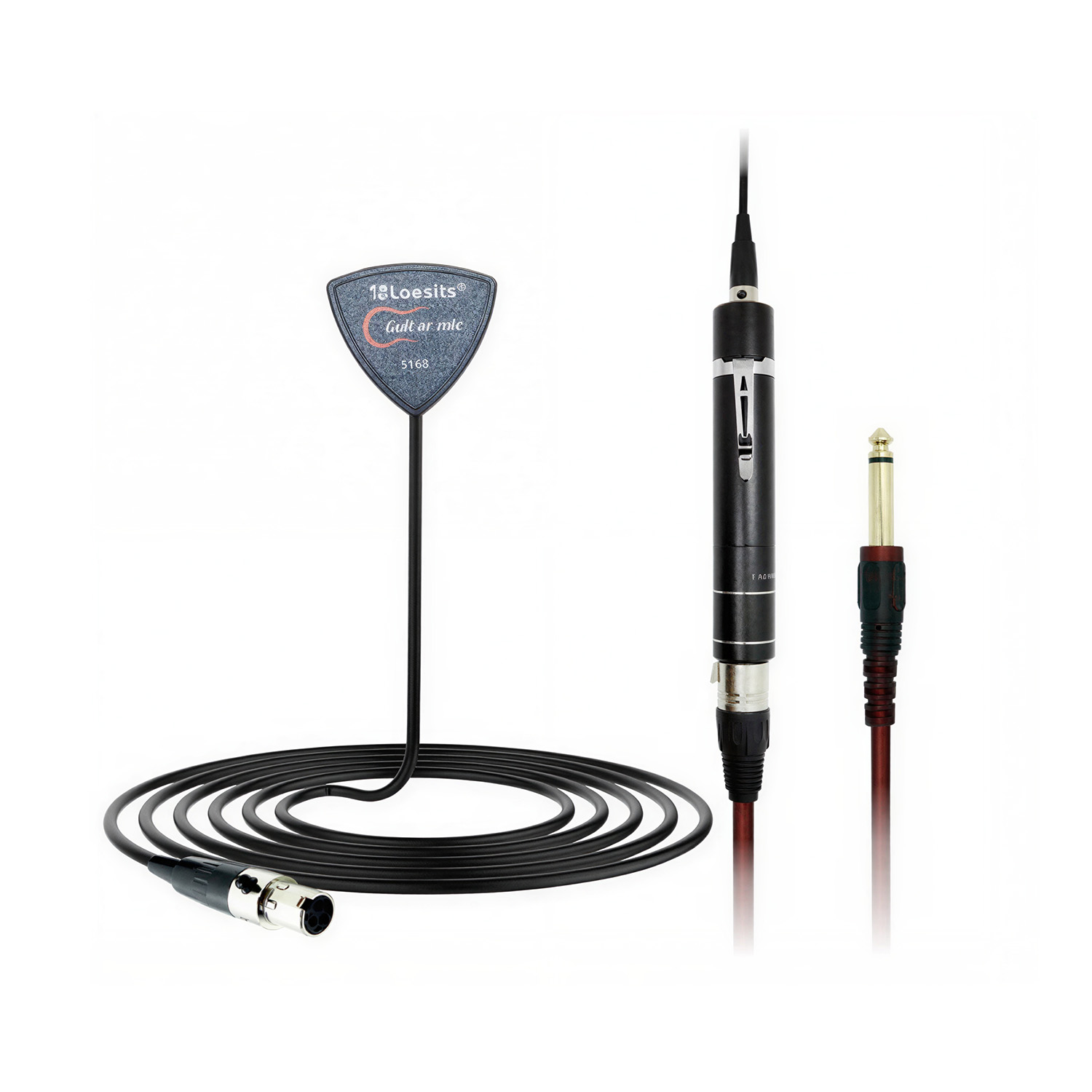

S168 is a black omnidirectional back-electret instrument microphone with a compact 4 mm capsule. The source lists 30 Hz–18 kHz response, 130 dB maximum SPL, 70 dB SNR and approximately 1.5 m cable; this listing is titled with an S50 power supply unit.
S168 is a black omnidirectional back-electret instrument microphone with a compact 4 mm capsule. The source lists 30 Hz–18 kHz response, 130 dB maximum SPL, 70 dB SNR and approximately 1.5 m cable; this listing is titled with an S50 power supply unit.
| Model | S168 |
| Package | S50 power supply unit |
| Microphone type | Back-electret condenser |
| Polar pattern | Omnidirectional |
| Frequency response | 30 Hz–18 kHz |
| Impedance | Source states ≤200 Ω ±30% at 1 kHz and also 680 Ω; confirm version |
| Microphone diameter | 4.0 mm |
| Sensitivity | -40 dB ± 2 dB at 1 kHz |
| Maximum SPL | 130 dB at 1 kHz, ≤1% THD |
| Signal-to-noise ratio | 70 dB |
| Cable length | Approximately 1.5 m |
| Colour | Black |
| SKU | M00554 |
Relevant to compatible instrument and bodypack/amplifier systems. Confirm mount, connector, impedance version, power requirements and whether the S50 unit is included.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What is the pickup pattern?
Omnidirectional.
Why are two impedance values shown?
The source contains both ≤200 Ω ±30% and 680 Ω; confirm the selected version.
Is the S50 unit included?
The listing title states S50 power supply unit. Confirm current packing.
What should buyers confirm?
Mount, connector, impedance, power and complete package.
