Product Description

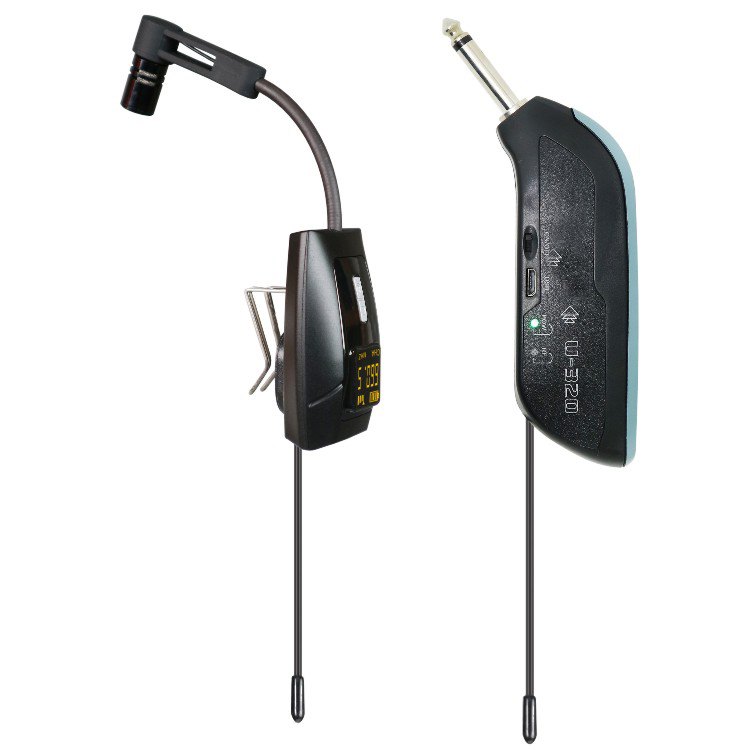

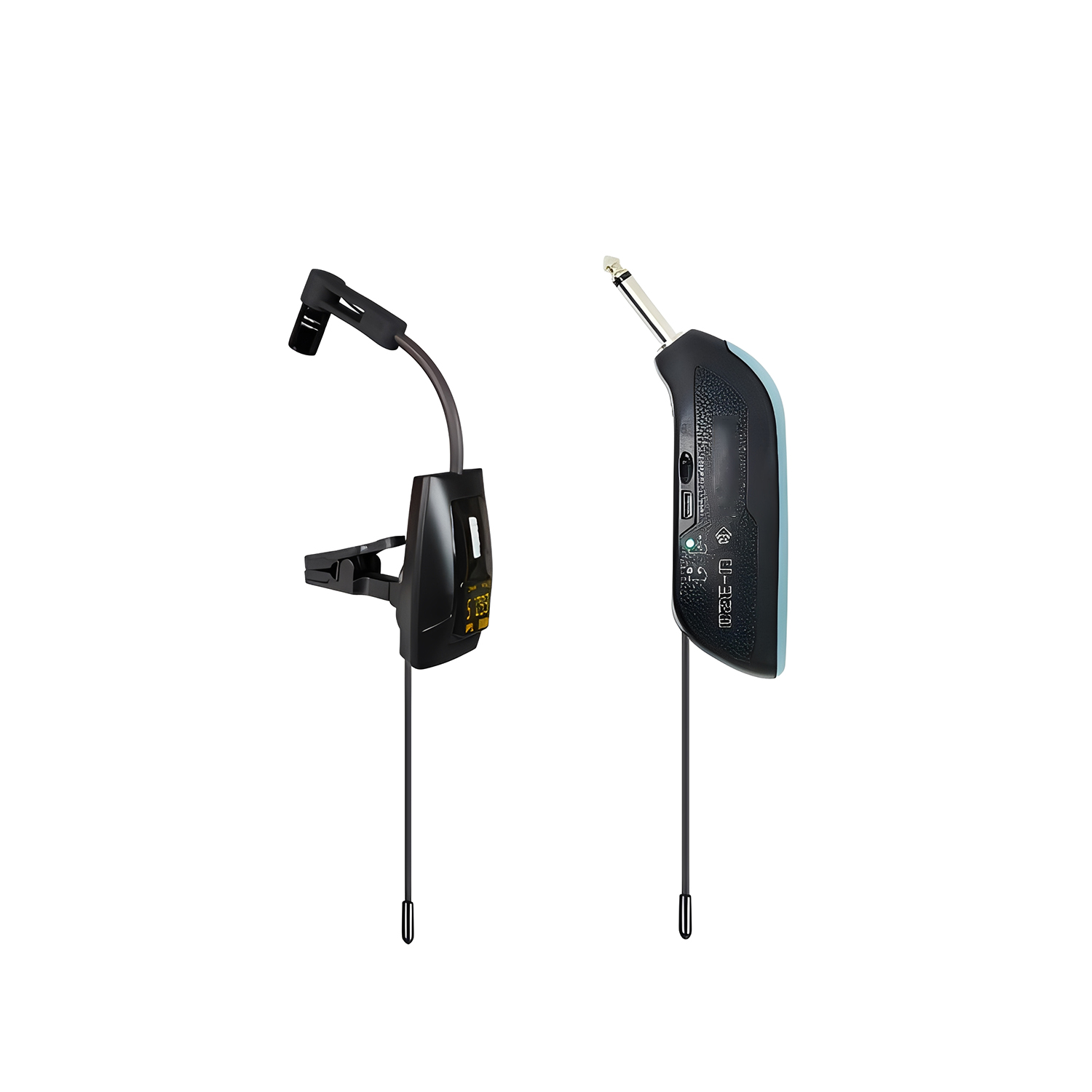

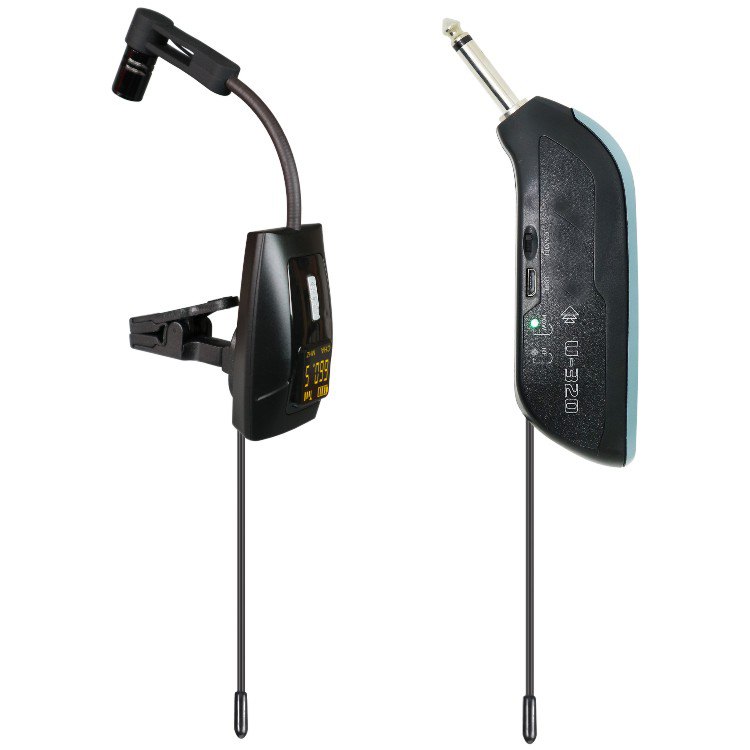

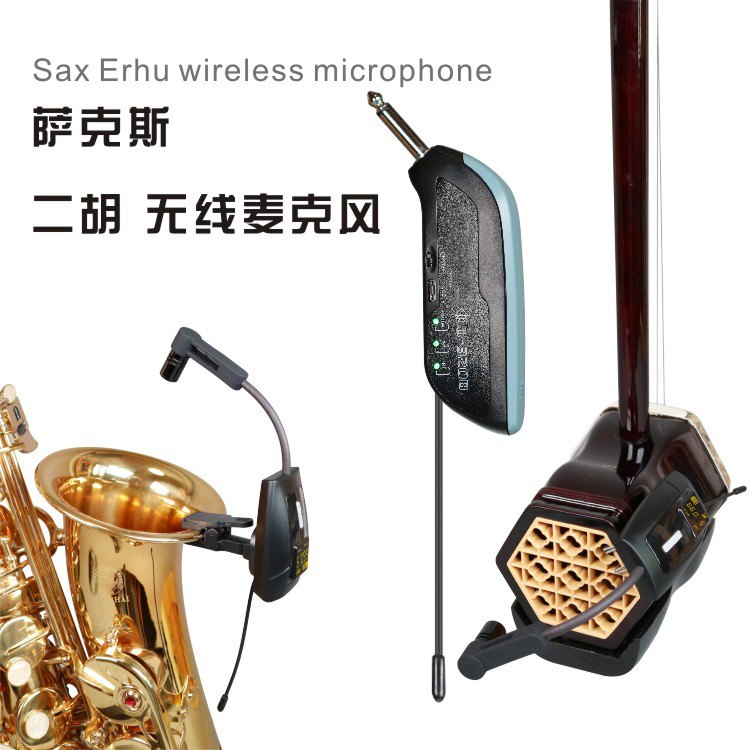

It can be applied to wind instruments (such as saxophones, trumpets, etc.). 25-channel frequency micro wireless, built-in rechargeable battery.
This wireless system uses UHF frequency, with 25 adjustable frequencies built-in. The wireless range is far, with strong anti-interference capabilities, widely applicable to various occasions for musical instruments.
Receiver technical parameters
Receiver sensitivity: -94 dbm
Audio uses AGC and limiter
Operating voltage: 2.7-3.6V
Operating frequency: 640 - 660 Mhz
Digital modulation method: P% DQPSK
Effective bandwidth 300KHz
High-frequency signal-to-noise ratio: 96dB
Frequency response: 30-20KHz
Transmitter technical parameters
Maximum transmission power: 10dBm
Gain adjustment range: 0~47.5dB
Audio uses AGC and limiter
Operating voltage: 2.7-3.6V
Operating frequency: 640~660MHz
Digital modulation method: P-DQPSK
Effective bandwidth: 300KHz
High-frequency signal-to-noise ratio: 96dB
Frequency response: 30-20KHz
