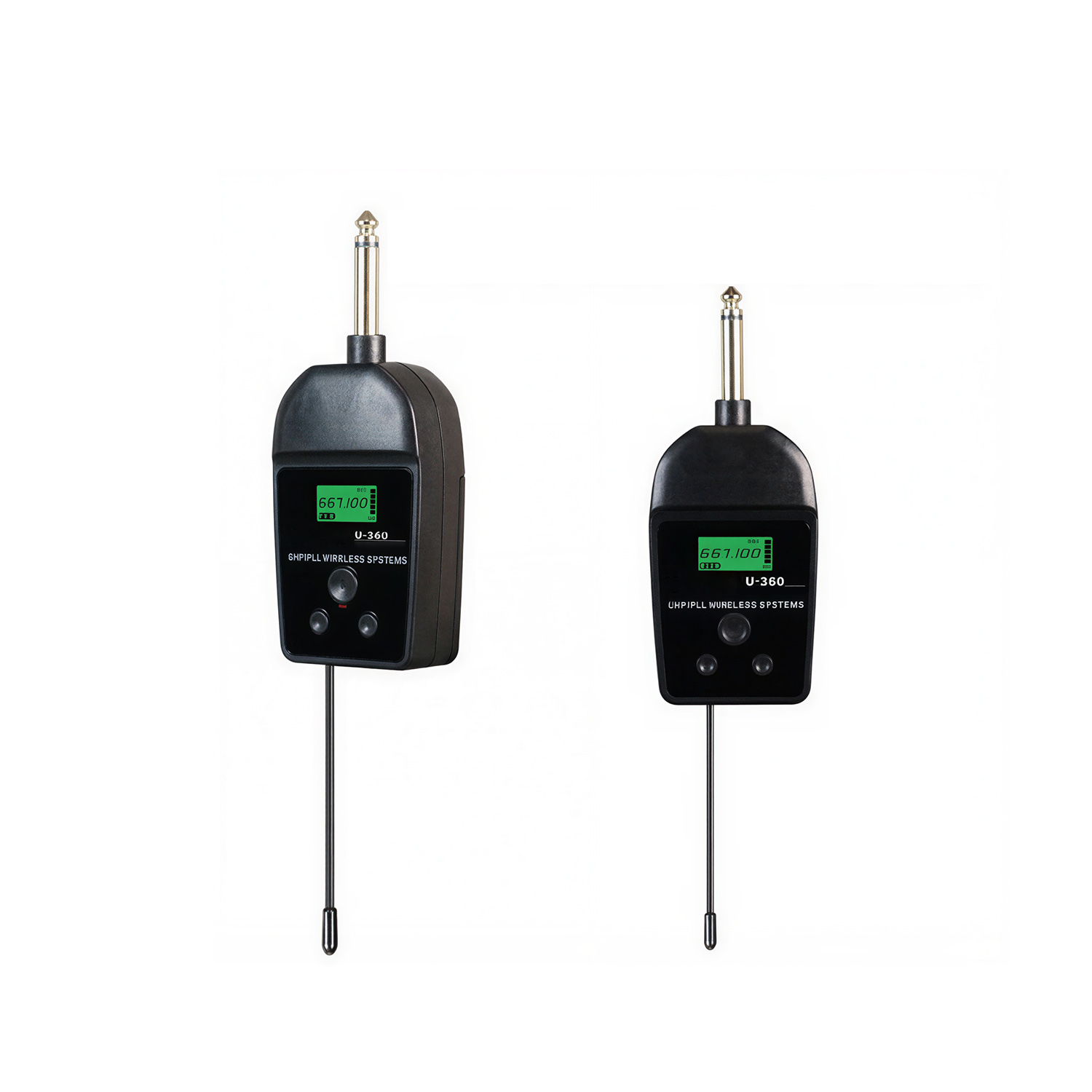

Product Description
Specially designed for electric musical instruments (such as electric guitars, electric wind instruments, electric violins, electronic keyboards, etc.), equipped with rechargeable batteries upon delivery, with a full charge lasting approximately ten hours.
This wireless system uses UHF frequency, with 16 adjustable frequencies built-in. The wireless range is far, with strong anti-interference capability, widely applicable to various occasions for musical instrument performance.
Receiver Technical Parameters
Receiver Sensitivity: -94 dbm
Audio uses AGC and limiter
Operating Voltage: 2.7-3.6V
Operating Frequency: 610 - 690 Mhz
Digital Modulation Method: P% DQPSK
Effective Bandwidth: 300KHz
High Frequency Signal-to-Noise Ratio: 96dB
Frequency Response: 30-20KHz
Transmitter Technical Parameters
Maximum Transmit Power: 10dBm
Gain Adjustment Range: 0~47.5dB
Audio uses AGC and limiter
Operating Voltage: 2.7-3.6V
Operating Frequency: 610~690MHz
Digital Modulation Method: P-DQPSK
Effective Bandwidth: 300KHz
High Frequency Signal-to-Noise Ratio: 96dB
Frequency Response: 30-20KHz
