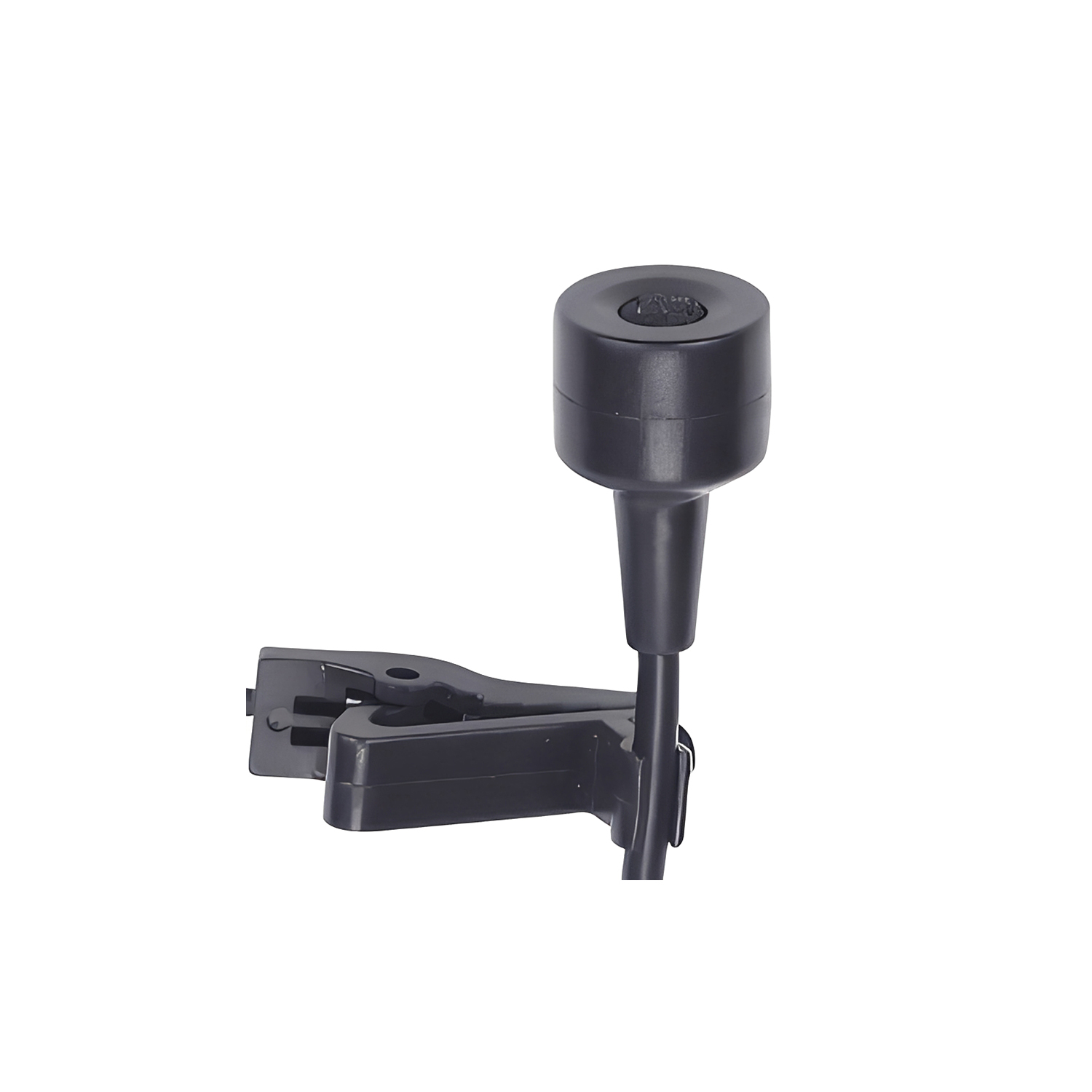

HY-A13 Black Condenser Lavalier Microphone
HY-A13 is a black unidirectional lavalier microphone with a 9.7 × 5.05 mm capsule and DC 1–10 V operation.
SKU:J20027
PROFESSIONAL AUDIO · B2B SOURCING
HY-A13 is a lavalier microphone with unidirectional pickup and a 9.7 × 5.05 mm capsule. Its 1.2 m cable and DC 1–10 V working range require matching connector, wiring and input power.
HY-A13 is a lavalier microphone with unidirectional pickup and a 9.7 × 5.05 mm capsule. Its 1.2 m cable and DC 1–10 V working range require matching connector, wiring and input power.
| Model | HY-A13 |
| Product type | Lavalier microphone |
| Colour / format | Black |
| Pickup direction | Unidirectional |
| Capsule size | 9.7 × 5.05 mm |
| Sensitivity | -38 ± 1 dB |
| Frequency response | 100 Hz–10 kHz |
| Output impedance | ≤680 Ω / ≤2.2 kΩ, as stated |
| Working voltage | DC 1–10 V |
| Signal-to-noise ratio | >58 dB |
| Cable length | 1.2 m |
| Connector | Not stated in the current source record |
| SKU | J20027 |
Relevant to compatible voice, bodypack, recorder or installed systems. Confirm connector, pin wiring, bias voltage and mounting requirements.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What pickup direction is used?
Unidirectional.
How long is the cable?
1.2 m.
What working voltage is stated?
DC 1–10 V.
Is the connector published?
No. Confirm connector and wiring for the target system.
