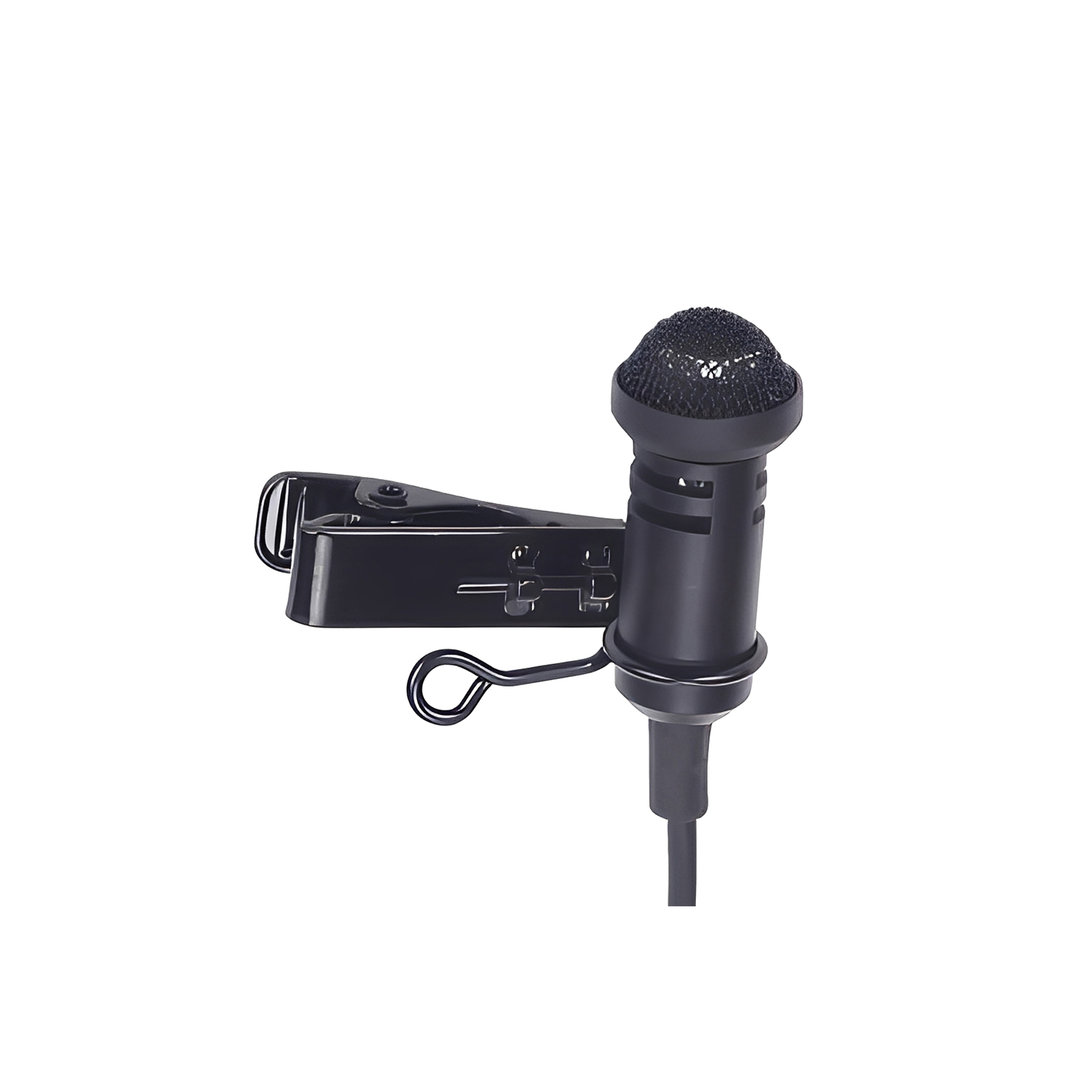

HY-Q103 Metal Lavalier Microphone
HY-Q103 is a metal unidirectional lavalier microphone with a compact 6 × 3.7 mm capsule, 1.2 m cable and DC 1–10 V operation.
SKU:J20032
PROFESSIONAL AUDIO · B2B SOURCING
HY-Q103 is a metal lavalier microphone with single-direction pickup and a compact 6 × 3.7 mm capsule. The source lists 20 Hz–20 kHz response, 1.2 m cable and DC 1–10 V operating range.
HY-Q103 is a metal lavalier microphone with single-direction pickup and a compact 6 × 3.7 mm capsule. The source lists 20 Hz–20 kHz response, 1.2 m cable and DC 1–10 V operating range.
| Model | HY-Q103 |
| Product type | Metal lavalier microphone |
| Pickup direction | Unidirectional |
| Capsule size | 6.0 × 3.7 mm |
| Sensitivity | -42 ± 2 dB |
| Frequency response | 20 Hz–20 kHz |
| Output impedance | ≤680 Ω / ≤2.2 kΩ, as stated |
| Working voltage | DC 1–10 V |
| Signal-to-noise ratio | >58 dB |
| Cable length | 1.2 m |
| Connector | Not stated in the current source record |
| SKU | J20032 |
Relevant to compatible bodypacks, recorders and wired voice systems requiring a compact lavalier capsule. Confirm connector, wiring, bias voltage and placement.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What is the capsule size?
6.0 × 3.7 mm.
What pickup direction is stated?
Unidirectional.
What frequency response is published?
20 Hz–20 kHz.
What must buyers confirm?
Confirm connector, pin wiring, working voltage and target device.
