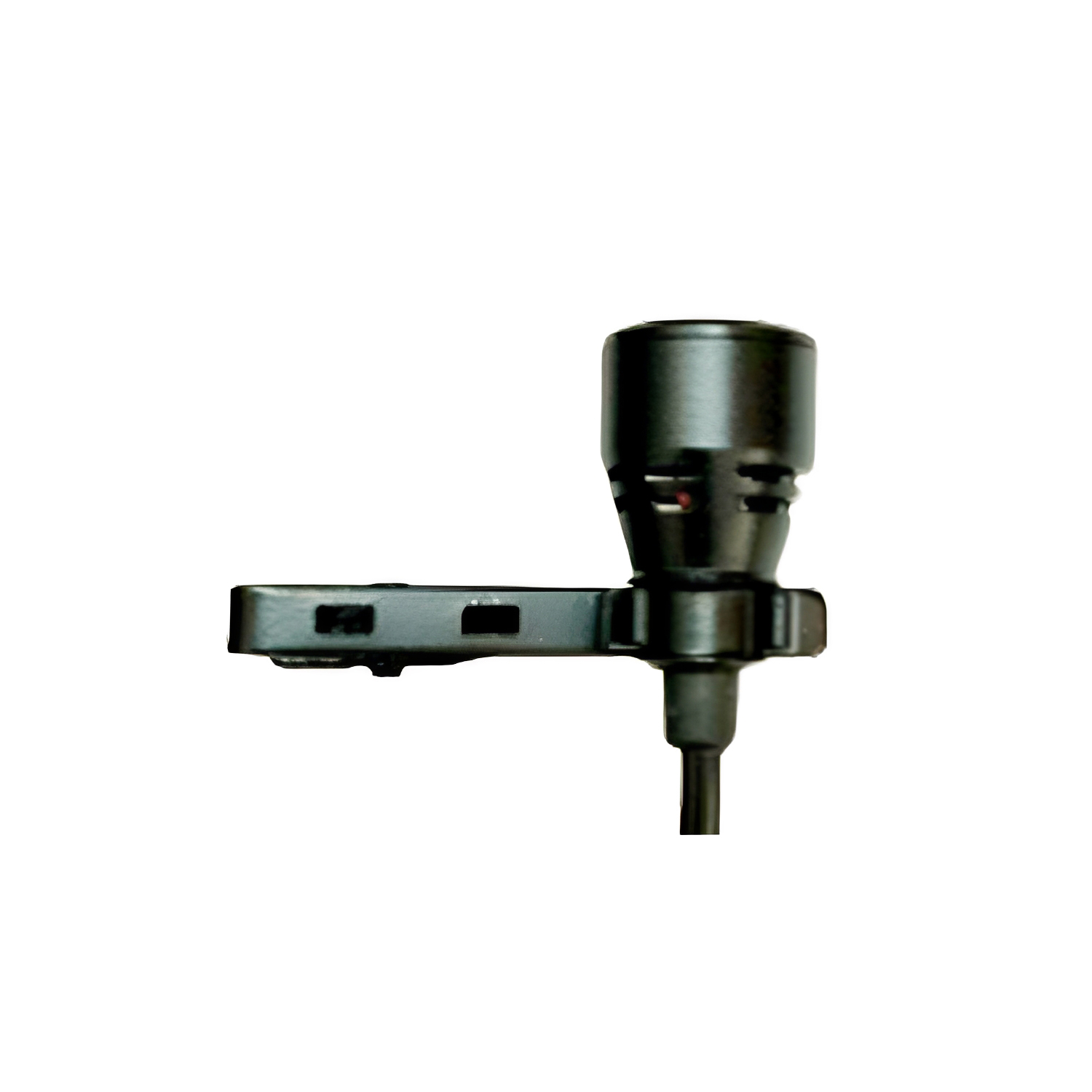

HY-Q105 Metal Lavalier Microphone
HY-Q105 is a metal unidirectional lavalier microphone with 9.7 × 5.05 mm capsule, 1.2 m cable and DC 1–10 V operation.
SKU:J20034
PROFESSIONAL AUDIO · B2B SOURCING
HY-Q105 is a metal lavalier microphone with single-direction pickup and a 9.7 × 5.05 mm capsule. Its 1.2 m cable is suited to compatible bodypack, recorder and wired input configurations when connector and voltage are matched.
HY-Q105 is a metal lavalier microphone with single-direction pickup and a 9.7 × 5.05 mm capsule. Its 1.2 m cable is suited to compatible bodypack, recorder and wired input configurations when connector and voltage are matched.
| Model | HY-Q105 |
| Product type | Metal lavalier microphone |
| Pickup direction | Unidirectional |
| Capsule size | 9.7 × 5.05 mm |
| Sensitivity | -38 ± 1 dB |
| Frequency response | 100 Hz–10 kHz |
| Output impedance | ≤680 Ω / ≤2.2 kΩ, as stated |
| Working voltage | DC 1–10 V |
| Signal-to-noise ratio | >58 dB |
| Cable length | 1.2 m |
| Connector | Not stated in the current source record |
| SKU | J20034 |
Relevant to compatible wireless bodypacks, recorders and wired voice systems. Confirm connector, pin wiring, bias voltage and clothing-mount requirements.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What pickup direction is used?
Unidirectional.
How long is the cable?
1.2 m.
What is the capsule size?
9.7 × 5.05 mm.
Is connector compatibility universal?
No. Confirm connector, wiring and voltage for the target device.
