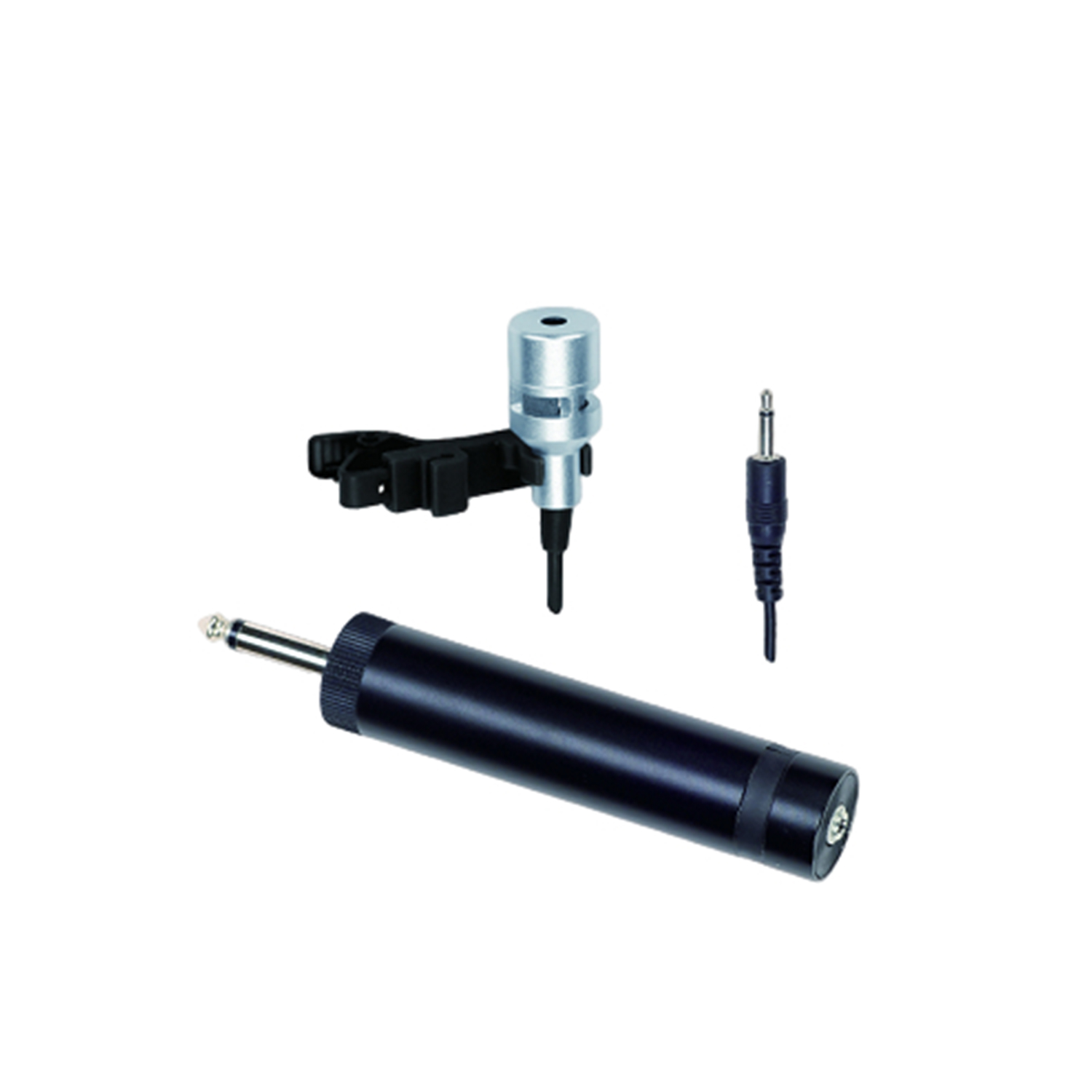

HY-30DX Power Supply Lavalier Microphone
HY-30DX is a unidirectional powered lavalier microphone with 9.7 × 5.05 mm capsule, 5 m cable and DC 1–10 V operation.
SKU:J20046
PROFESSIONAL AUDIO · B2B SOURCING
HY-30DX is a powered lavalier microphone with single-direction pickup and a 9.7 × 5.05 mm capsule. Its 5 m cable supports compatible conference, presentation and installed voice applications requiring extended cable reach.
HY-30DX is a powered lavalier microphone with single-direction pickup and a 9.7 × 5.05 mm capsule. Its 5 m cable supports compatible conference, presentation and installed voice applications requiring extended cable reach.
| Model | HY-30DX |
| Product type | Powered lavalier microphone |
| Pickup direction | Unidirectional |
| Capsule size | 9.7 × 5.05 mm |
| Sensitivity | -38 ± 1 dB |
| Frequency response | 100 Hz–10 kHz |
| Output impedance | ≤680 Ω / ≤2.2 kΩ, as stated |
| Working voltage | DC 1–10 V |
| Signal-to-noise ratio | >58 dB |
| Cable length | 5.0 m |
| Connector | Not stated in the current source record |
| SKU | J20046 |
Relevant to compatible conference, presentation and installed voice systems. Confirm connector, wiring, bias voltage and input compatibility before ordering.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What pickup direction is used?
Unidirectional.
How long is the cable?
5.0 m.
What voltage is required?
DC 1–10 V is stated.
Is the connector published?
No. Confirm connector and wiring for the target system.
