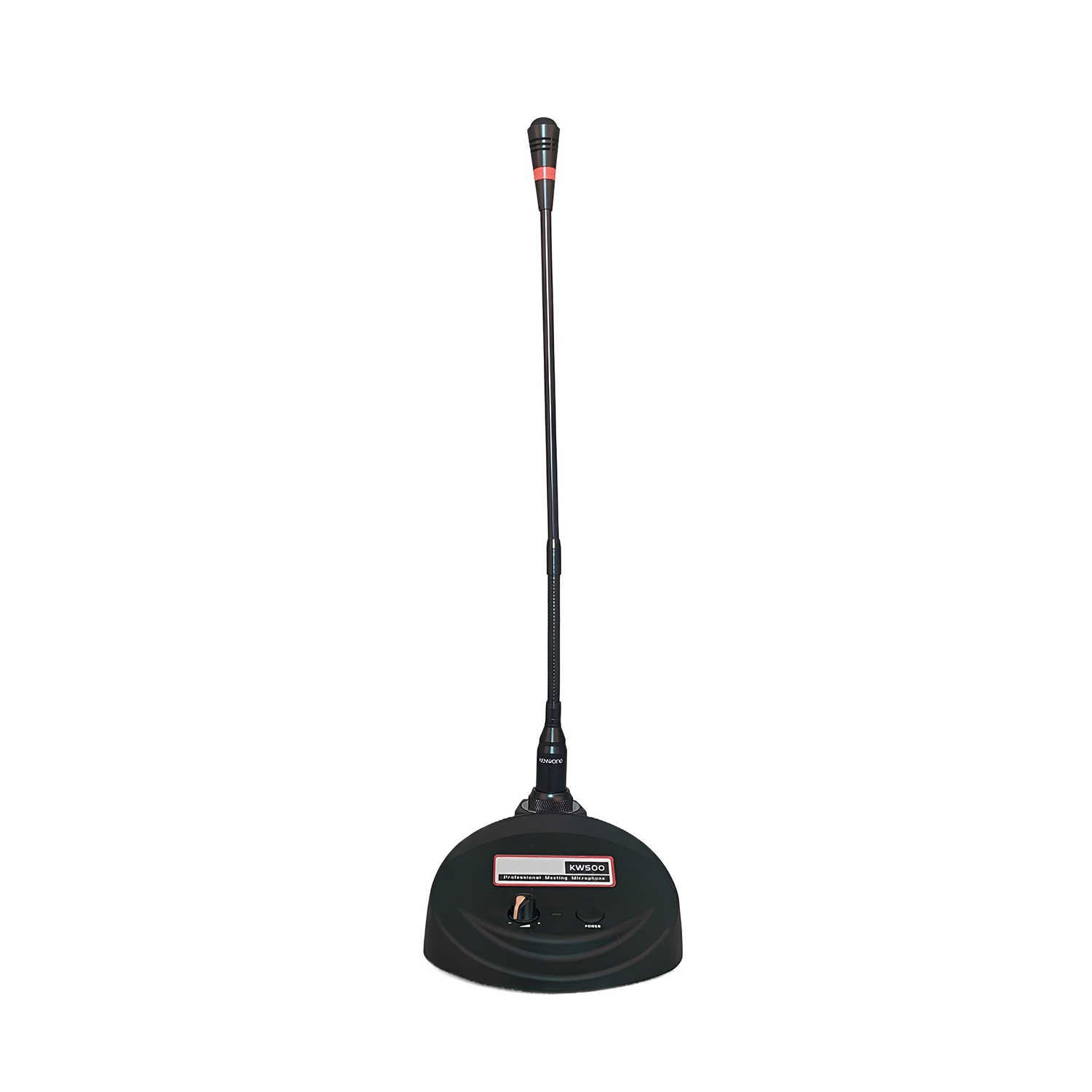

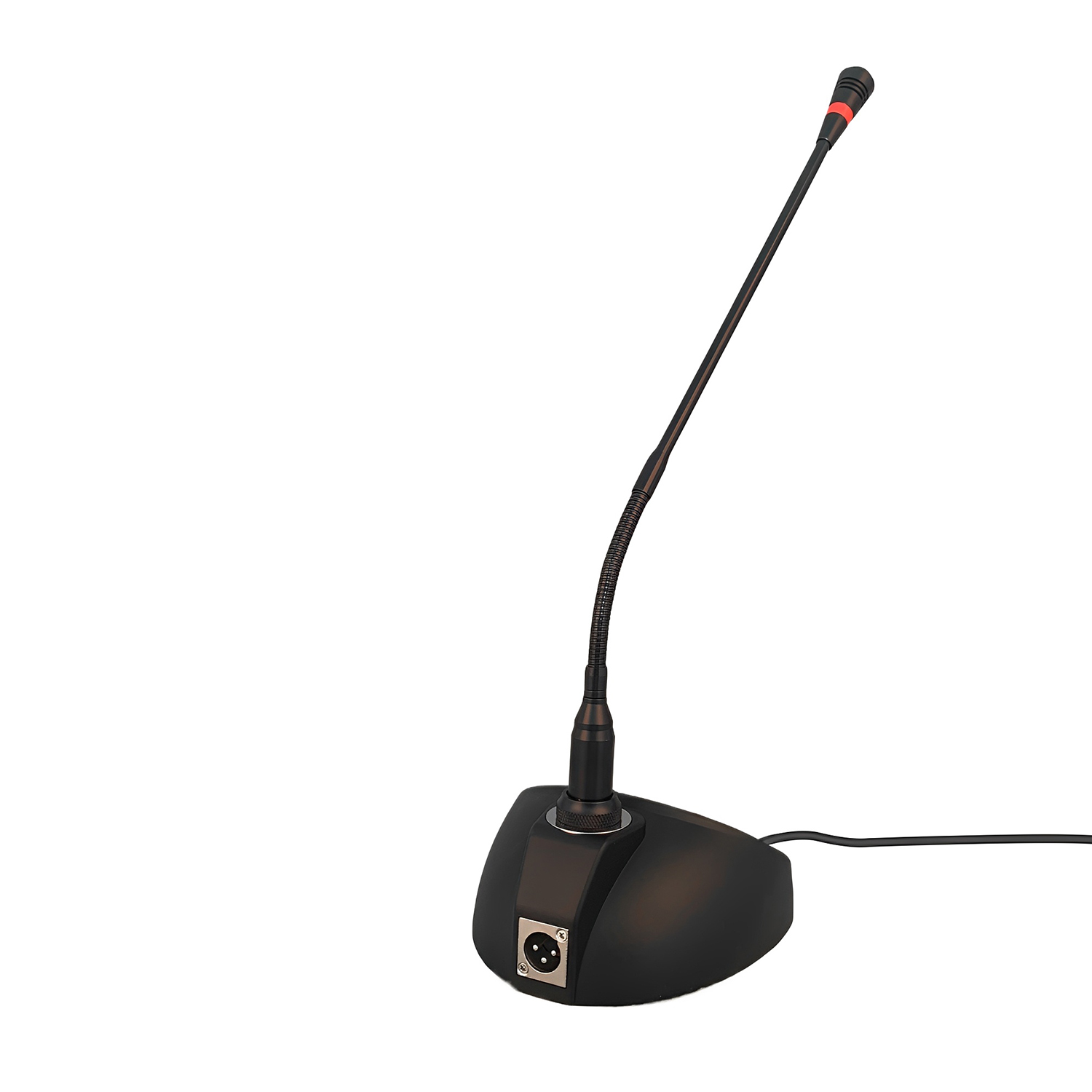

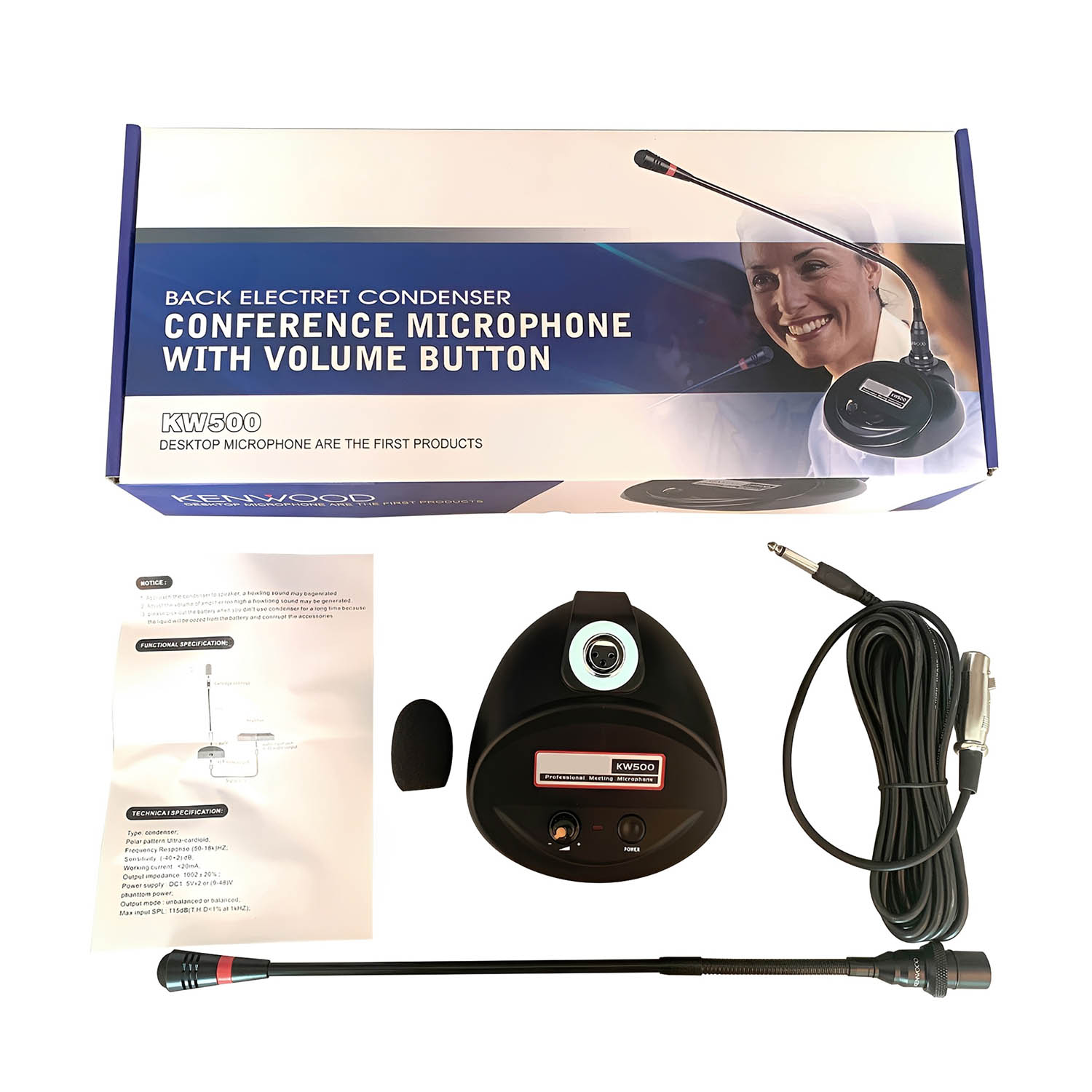

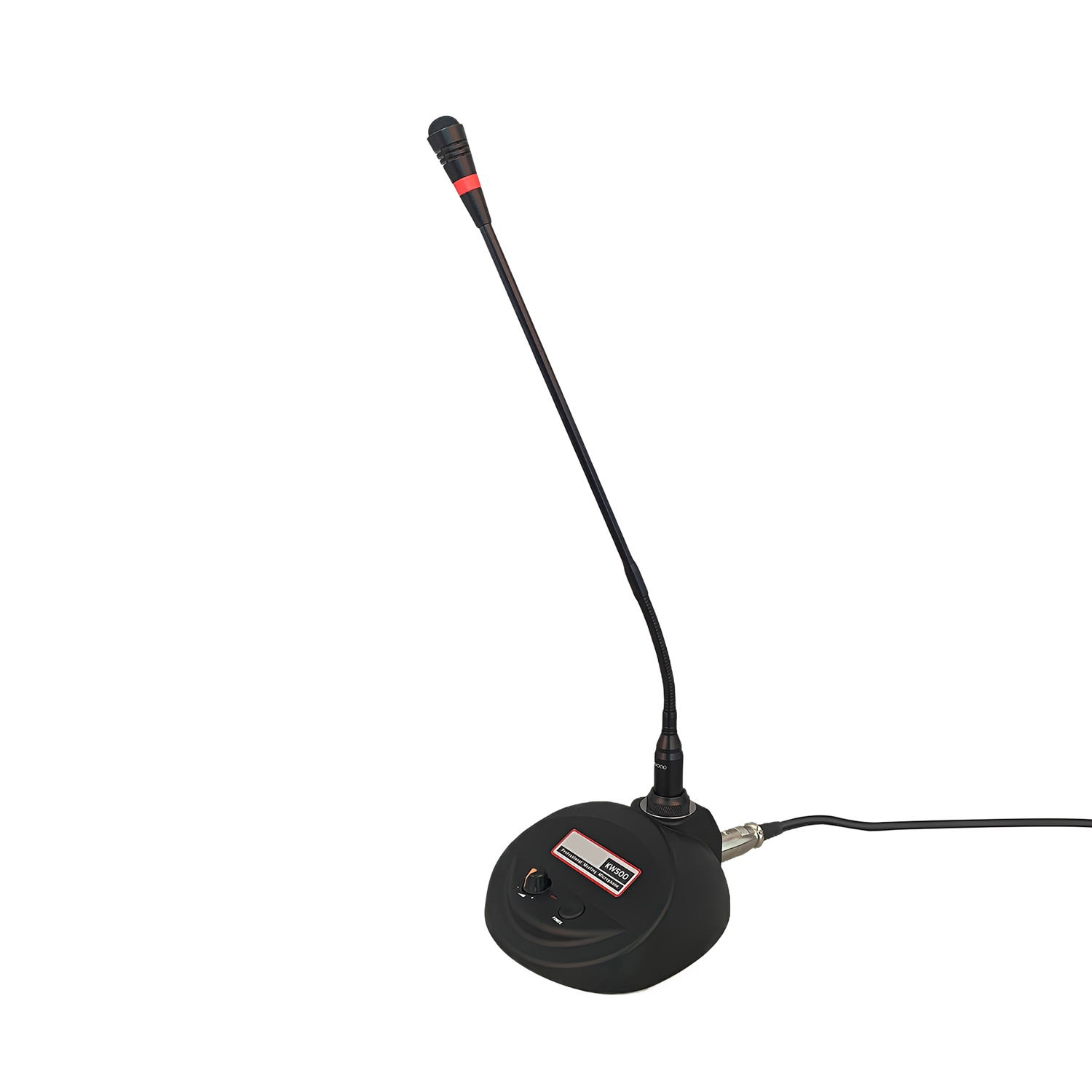

KW500 Wired Conference Microphone
KW500 is an ultra-cardioid condenser conference microphone supporting DC battery power or 9–48 V phantom power.
SKU:E10040
PROFESSIONAL AUDIO · B2B SOURCING
KW500 is a wired condenser conference microphone with ultra-cardioid pickup. It supports two 1.5 V cells or 9–48 V phantom power, and the published output mode can be balanced or unbalanced.
KW500 is a wired condenser conference microphone with ultra-cardioid pickup. It supports two 1.5 V cells or 9–48 V phantom power, and the published output mode can be balanced or unbalanced.
| Model | KW500 |
| Type | Condenser microphone |
| Polar pattern | Ultra-cardioid |
| Frequency response | 50 Hz–18 kHz |
| Sensitivity | -40 ± 2 dB |
| Working current | <20 mA |
| Output impedance | 100 Ω ± 20% |
| Power supply | DC 1.5 V × 2 or phantom power 9–48 V |
| Output mode | Unbalanced or balanced |
| Maximum input SPL | 115 dB (THD <1% at 1 kHz) |
| SKU | E10040 |
Relevant to compatible conference, lectern and desk speech systems. Keep the microphone away from loudspeakers and confirm amplifier gain, output wiring and power method to reduce feedback risk.
Contact ELEGAUDIO for pricing, order quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What pickup pattern is used?
Ultra-cardioid.
Can it use phantom power?
Yes. 9–48 V phantom power or two 1.5 V cells are stated.
What output modes are available?
Balanced or unbalanced output is stated.
How can feedback risk be reduced?
Avoid placing the microphone close to speakers and excessive amplifier volume.
