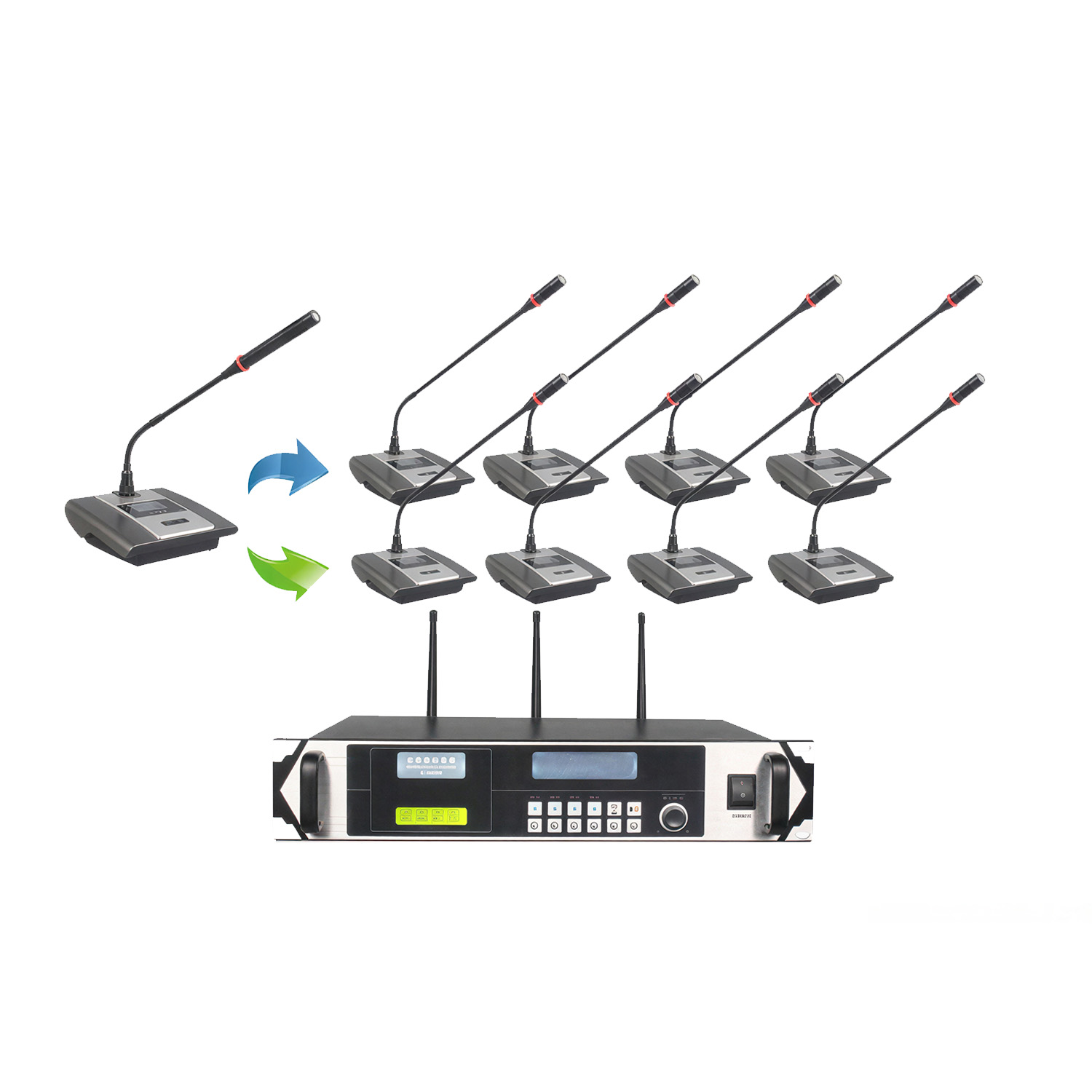

The system is comprehensive in function and can manage conference discussions according to different requirements of users and different operation modes.

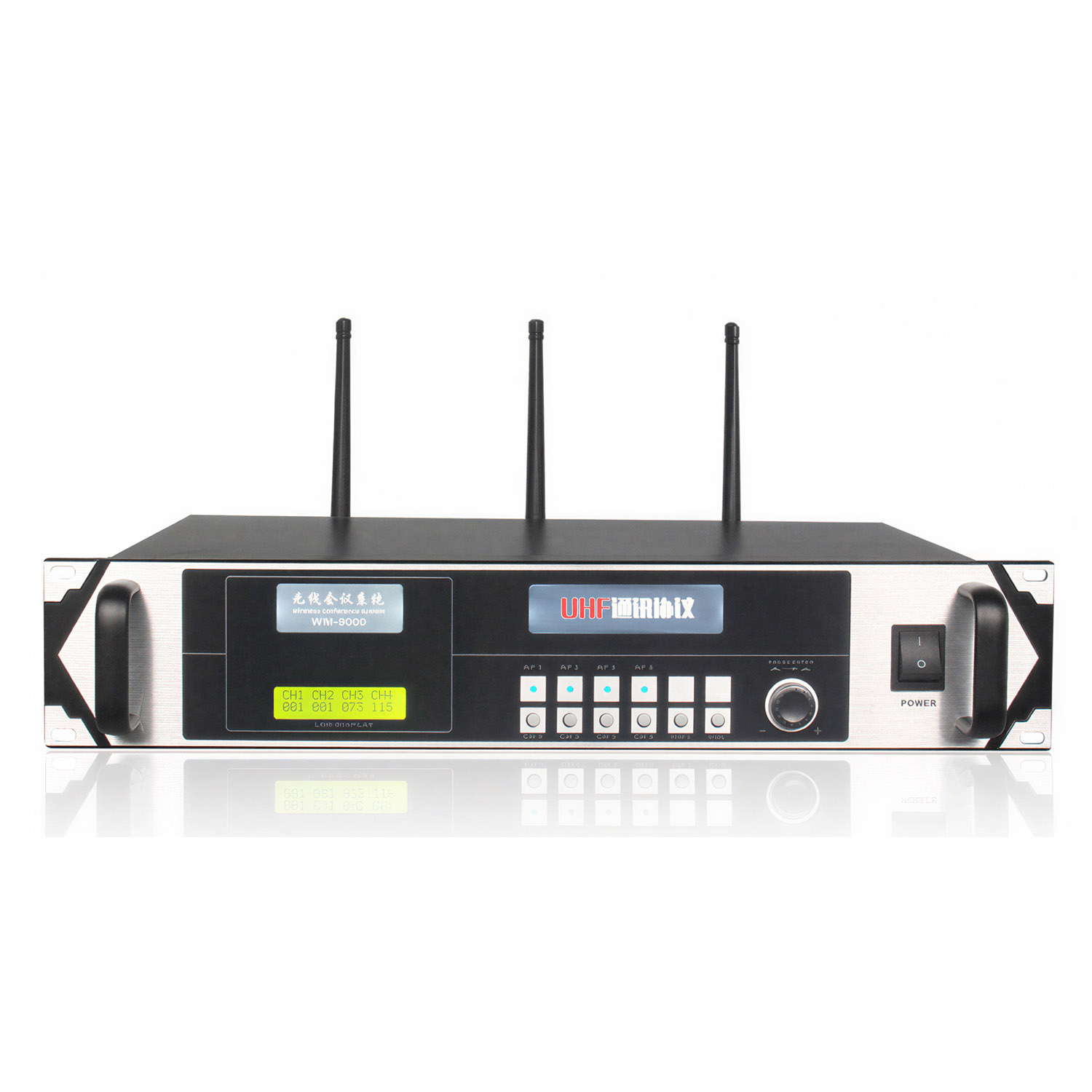

The default modulation of this host can bring 99 sets of representative/chairperson units, and the single host can expand the communication capability at most.
An unlimited number of representative units can be reached.
Host operating voltage: DC-12V---14V2A
Working current: 600mA
Power consumption: 5W
Receive sensitivity: 105DBM
Audio output voltage: 1V
Adjacent frequency interference suppression: >60DB

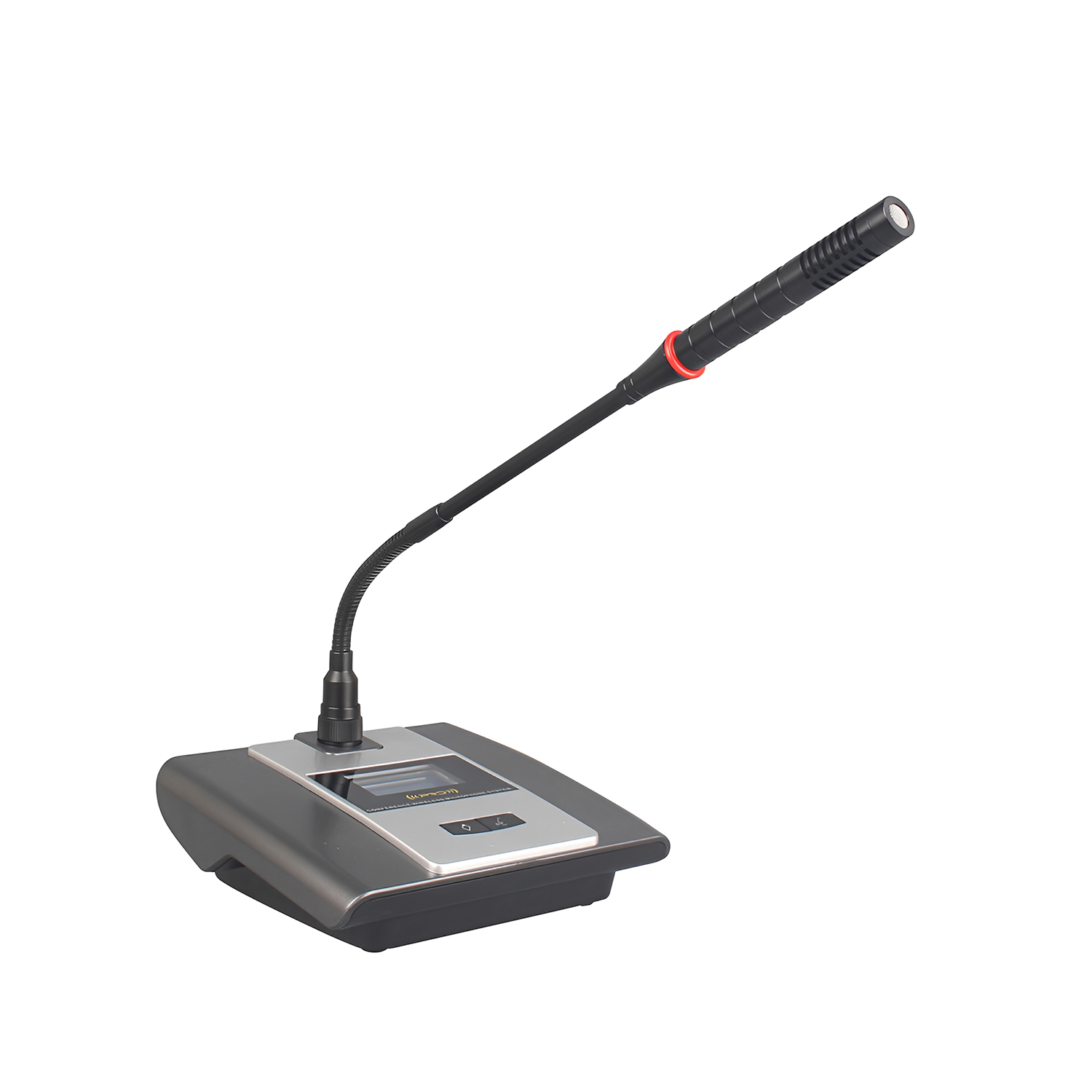

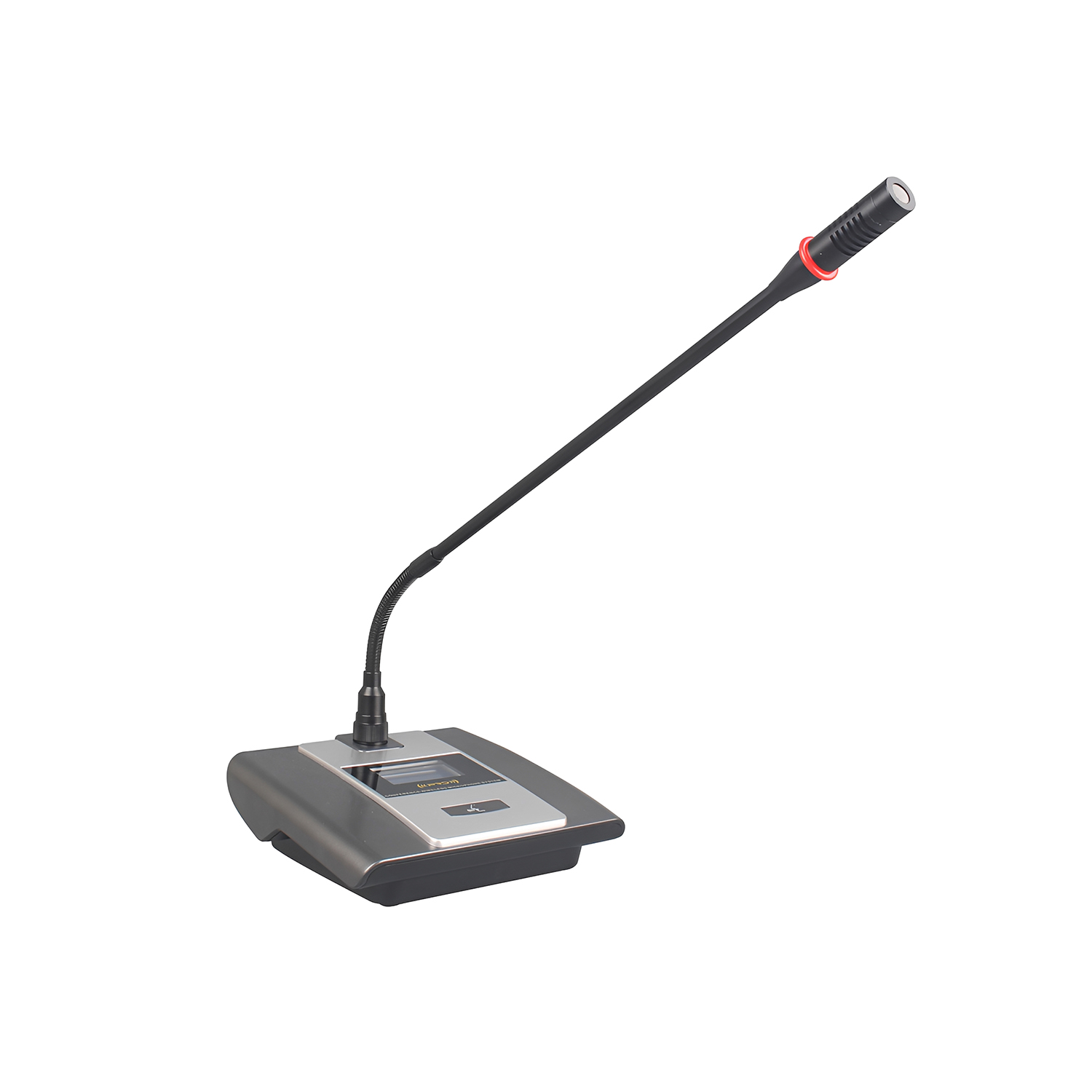

Microphone directionality: heart-shaped pointing
Pickup sensitivity: >0DBM(1v)
Transmit power: >10DBM (10mw)
Microphone power consumption: 120mA
Receive effective distance: 60-80 meters in an ideal environment
Audio response: 50Hz-15KHz
Frequency stability: +/- 0.001%
Signal to noise ratio: S/N >600DB
Distortion THD: <0.01%
