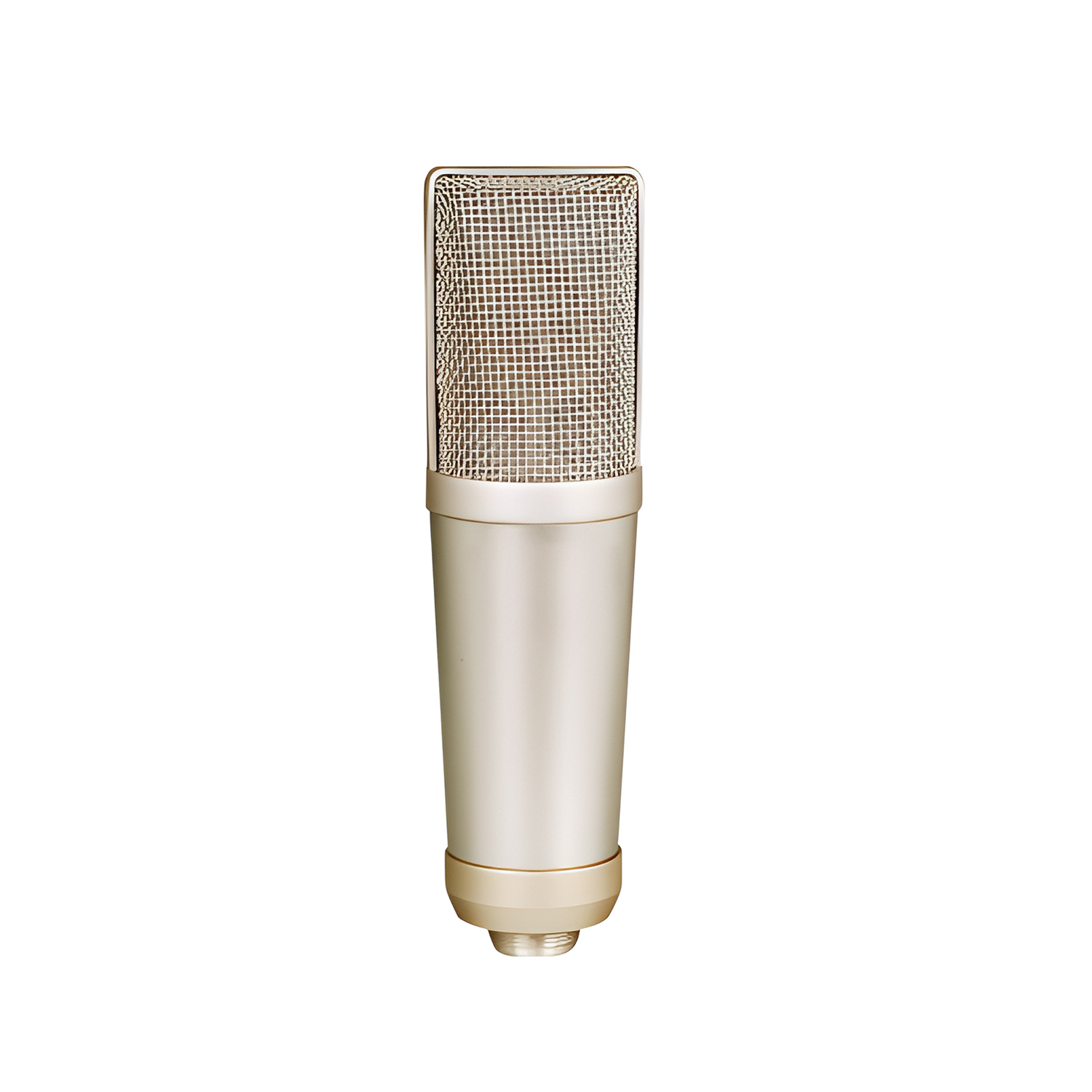

LARGE-DIAPHRAGM CONDENSER · DIALOGUE AND MUSIC RECORDING
The WH-430A combines cardioid pickup, 30 Hz–20 kHz response, high sensitivity, low noise and wide dynamic-range positioning for dialogue, music, film, radio, studio and stage-drama amplification.
| Model / SKU | WH-430A / F50005 |
|---|---|
| Directivity | Cardioid |
| Frequency Range | 30 Hz–20 kHz |
| Sensitivity | ≥25 mV/Pa (-32 dB ±2 dB) |
| Amplifier THD | ≤0.1% at 1 kHz, output ≥400 mV |
| Inherent Noise | ≤3 μV (A-weighted IEC) |
| Output / Load Impedance | ≤200Ω / ≥1000Ω |
| Power | 48V phantom power |
| Dimensions / Weight | Ø52 × 180 mm / 350 g |
Dialogue recording · Music recording · Film · Radio · Studio production · Stage drama · Compatible professional amplification
ELEGAUDIO supports distributors, importers, studios and project buyers. Send quantity, market and application for compatibility and quotation details.
Dialogue, music, film, radio, studio and stage-drama amplification are listed.
The WH-430A uses 48V phantom power.
The stated range is 30 Hz–20 kHz.
Send your quantity, destination country and recording application.
