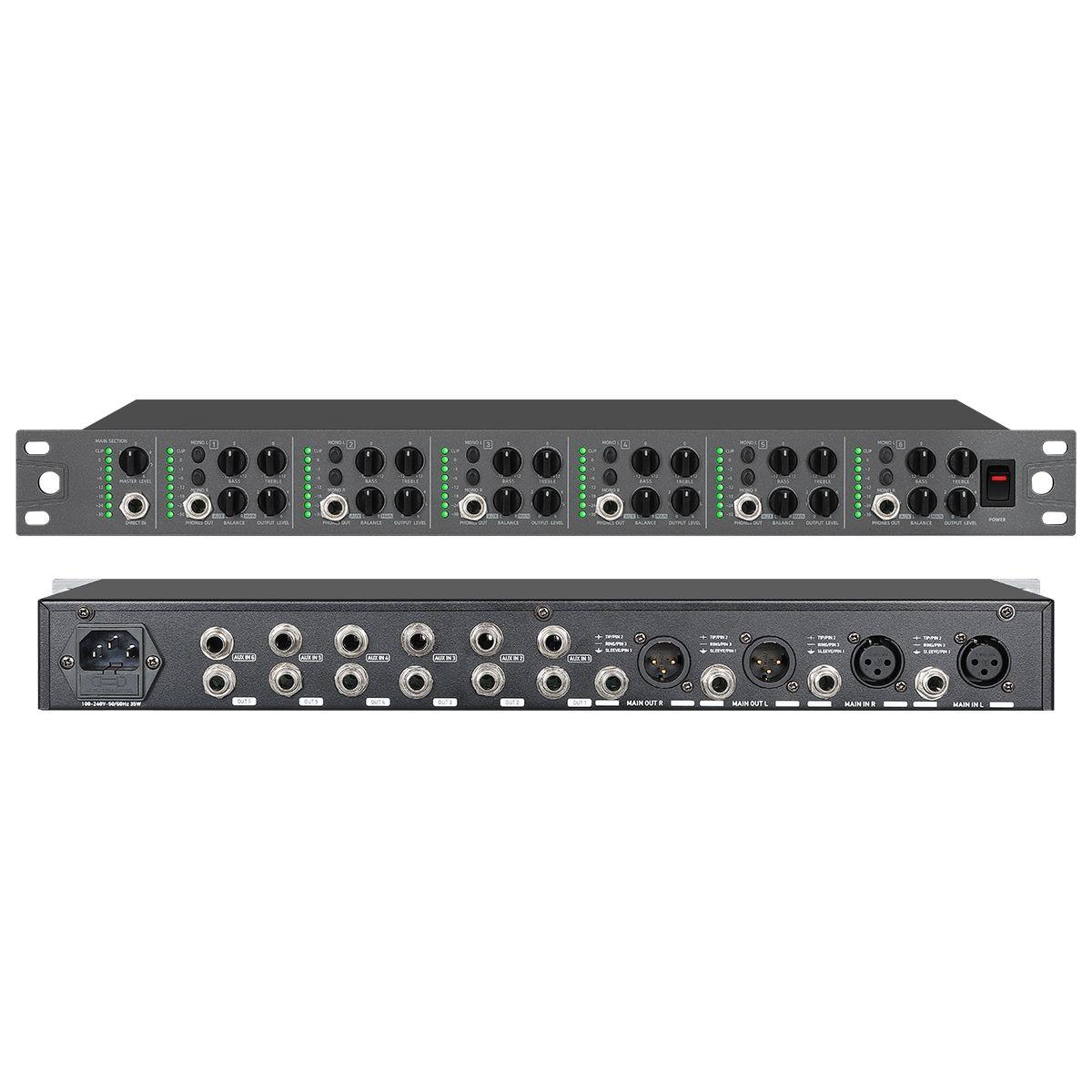

Product Description
Balanced Audio Input
Main Input Connectors: 2×XLR, 2×1/4" TRS, servo balanced
Input Impedance: 40kΩ (balanced), 20kΩ (unbalanced)
Maximum Input Signal Level: +22 dBu
Aux Input: 1×1/4" TRS stereo jack
System Specifications
Frequency Response: 10 Hz ~ 90 kHz, ±3 dB
Signal-to-Noise Ratio: >87 dB @ 0 dBu (22 Hz ~ 22 kHz)
Dynamic Range: 101 dB (22 Hz ~ 22 kHz)
Total Harmonic Distortion (THD): 0.007% (typical), +4 dBu, 1 kHz, Gain=1
Power Supply
Input Impedance: 20 kΩ; Maximum Input Signal Level: +22 dBu
Power Type: Switched-mode power supply, auto range 100–240 V~, 50/60 Hz
Direct Drive Input: 1×1/4" TRS stereo jack
Power Consumption: 35 W
Fuse Rating: T1.25AL 250V
Power Connector: Standard IEC inlet
Audio Output
Main Output Connectors: 2×XLR balanced, 2×1/4" TRS balanced
Headphone Outputs: 6×1/4" TRS stereo jacks
Output Power
30 Ω load: 1 W
300 Ω load: 260 mW
600 Ω load: 140 mW
Minimum Load Impedance: 8 Ω
Controls
Adjustable dynamic input signal level
Independent channel balance adjustment per channel
Aux (L) / Main (R) selection
Independent output level control per channel
High Frequency Control: ±12 dB @12 kHz
Low Frequency Control: ±12 dB @80 Hz
Function Switches
L/R mode switch
Level Indicators
Input Level Meter: -30, -24, -18, -12, -6, -3, 0 dB, editable
Output Level Meter: -30, -24, -18, -12, -6, -3, 0 dB, editable
Physical
Dimensions (H×W×D): 44 × 483 × 149 mm (1.7 × 19 × 5.9 inches)
Net Weight: 2.0 kg (4.4 lbs)
