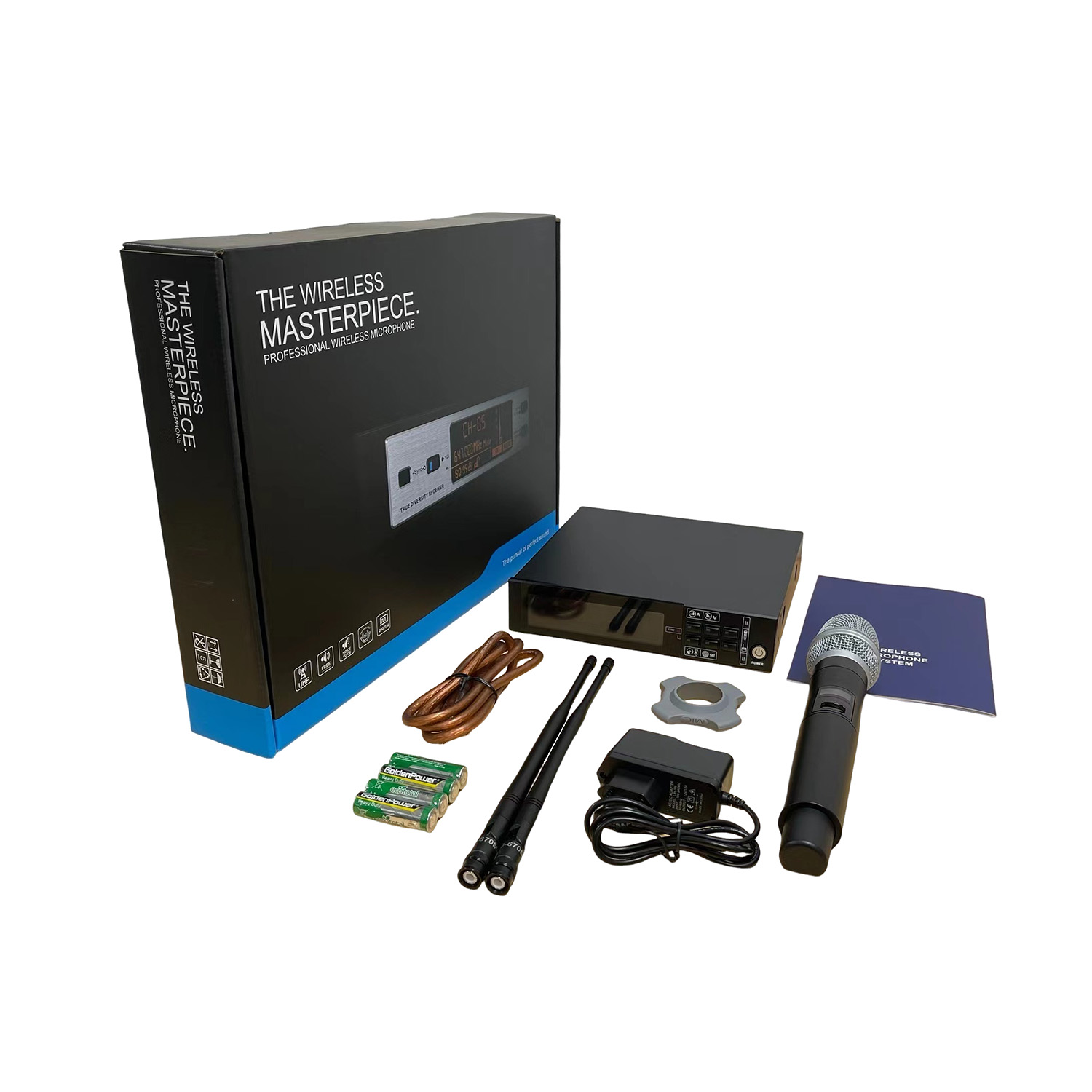

DG-100 1 CH UHF Wireless Microphone
SKU:A02004
Receiver
Chassis Specification: Standard 1U Rackmount
Number of Channel Groups: Dual Channel
Carrier Frequency Band: UHF 513–558MHz / 615–665MHz / 780–820MHz
Modulation Method: FM
Oscillation Mode: PLL Phase-Locked Frequency Synthesizer
Frequency Stability: ±0.0005%
Sensitivity: S/N >60dB @ 25kHz deviation, 6dBμV input
Maximum Deviation: ±45kHz
Bandwidth: 40MHz
Comprehensive S/N Ratio: >108dB
Comprehensive T.H.D.: <0.4% @ 1kHz
Comprehensive Frequency Response: 65Hz–18kHz ±3dB
Maximum Output Voltage: Balanced: -20dBV / 100Ω; Unbalanced: -4dBV / 5kΩ
Output Connectors: XLR balanced & 6.3mm unbalanced jack
Effective Working Distance: Typically 100m (open space)
Power Supply: 100–240V AC, 50/60Hz, 10W
Dimensions (L × H × W): 210mm × 43mm × 206mm

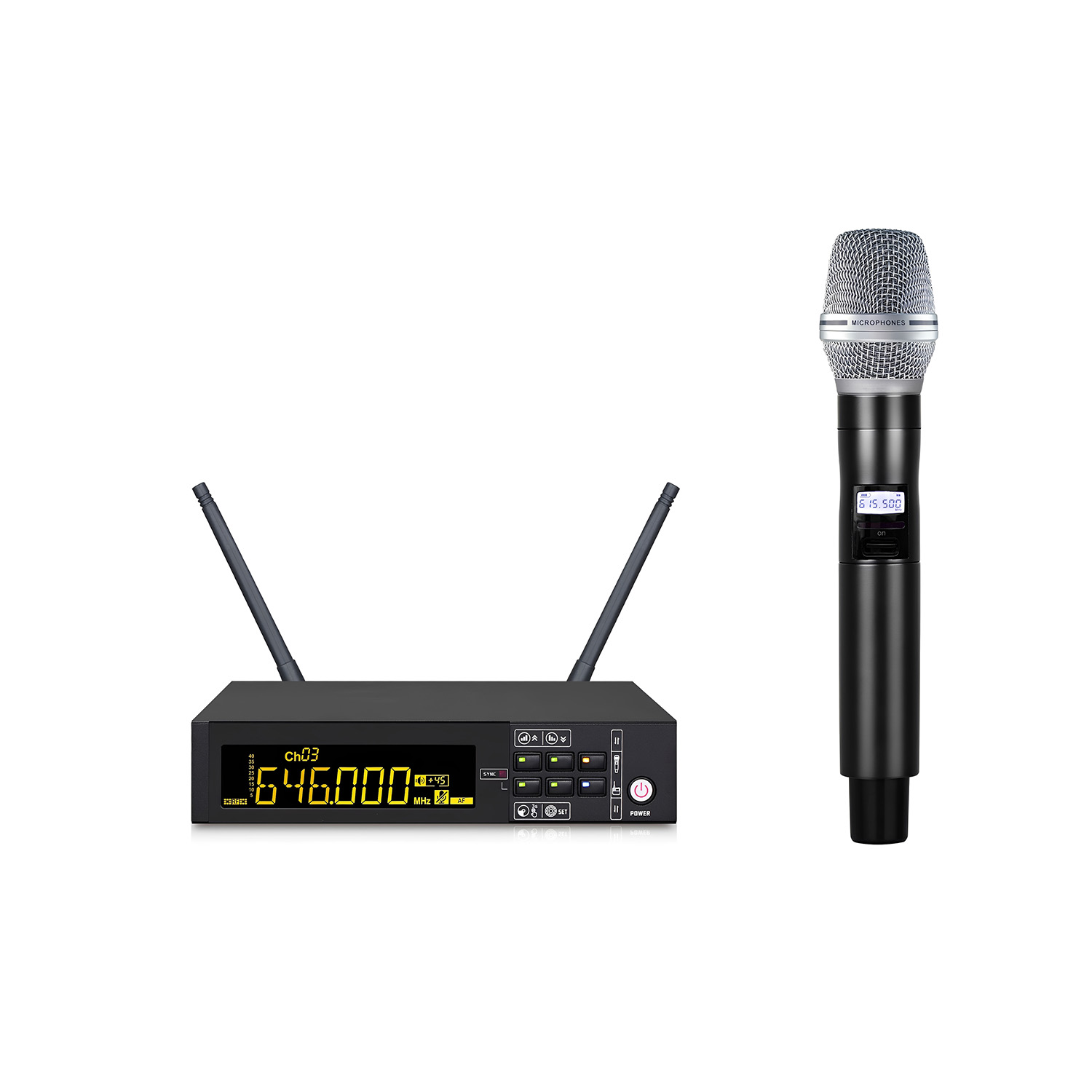

Handheld Transmitter Microphone
Carrier Frequency Band: UHF 513–558MHz / 615–665MHz / 780–820MHz
Oscillation Mode: PLL Phase-Locked Frequency Synthesizer
Harmonic Radiation: < -63dBm
Bandwidth: 80MHz
Maximum Deviation: ±45kHz
RF Power Output: 10mW
Frequency Response: 50Hz–18kHz
Maximum Input Sound Pressure Level: 130dB SPL
Microphone Element: Dynamic (Moving Coil)
Battery Type: AA × 2
Current Consumption: <110mA

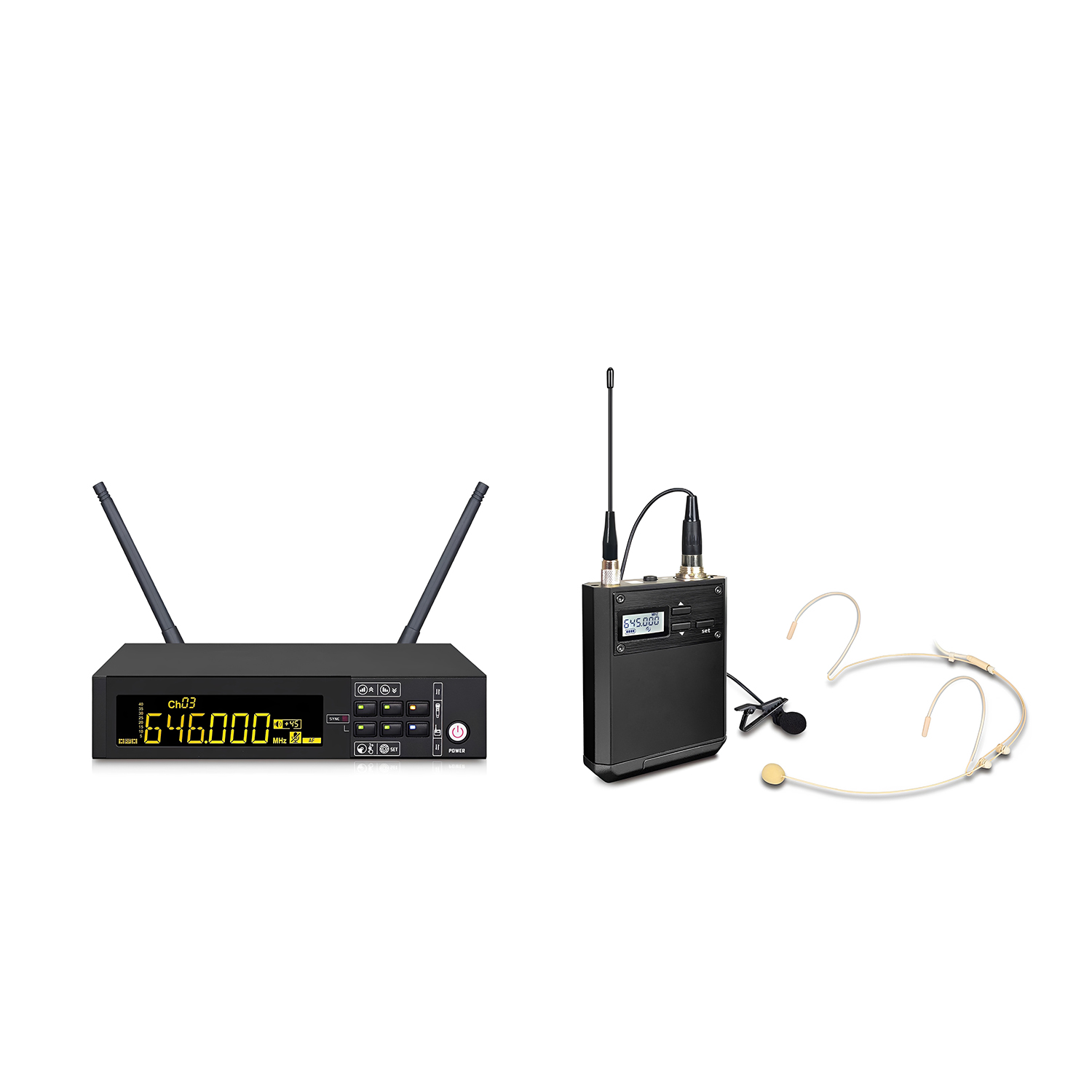

Beltpack Transmitter Microphone
Carrier Frequency Band: UHF 513–558MHz / 615–665MHz / 780–820MHz
Oscillation Mode: PLL Phase-Locked Frequency Synthesizer
Harmonic Radiation: < -63dBm
Bandwidth: 40MHz
Maximum Deviation: ±45kHz
RF Power Output: 10mW
Frequency Response: 50Hz–18kHz
Maximum Input Sound Pressure Level: 130dB SPL
Microphone Element: Condenser
Battery Type: AA × 2
Current Consumption: <110mA
Battery Life: Approximately 6 hours
Dimensions (Length × Diameter): 265mm × 56mm
