PSM300 Wireless Monitoring

Why Buyers Consider the PSM300

• RF range,566–590 MHz (source writes H/HA in places)
• Channel statement,G9 × C16; meaning requires confirmation
• Tuning bandwidth,24 MHz inferred from source “24 H/H2”; confirm
• RF output power,100 mW
• RF impedance,50 Ω

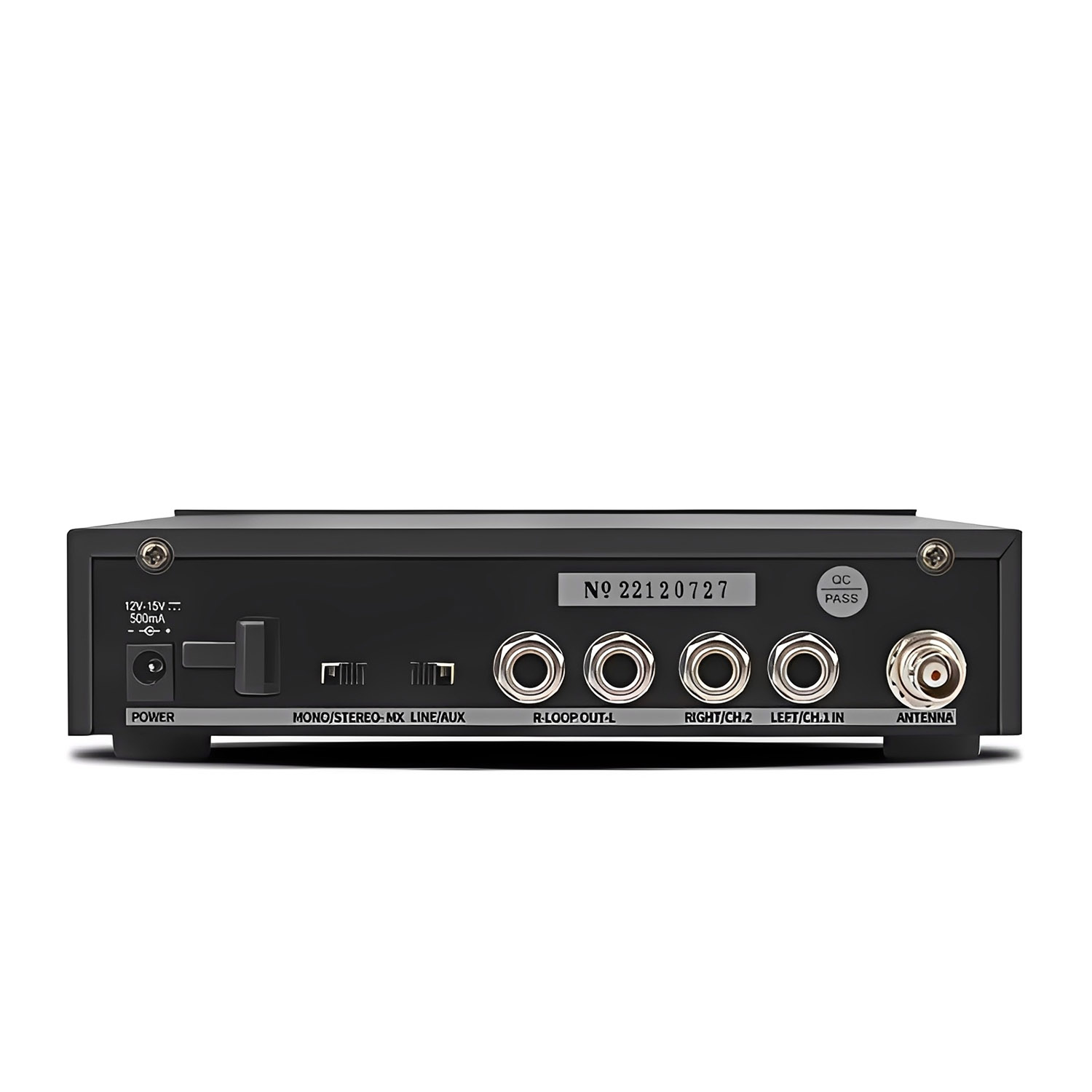

• Transmitter connector,BNC
• Sample rate,46.875 kHz
• Resolution,24 bit
• Transmitter dynamic range,103 dB+A
• Transmitter S/N,109 dB+A
• Typical latency,6 ms
• Frequency response,20 Hz–20 kHz
• Tuning,Manual + infrared
• Audio input,6.35 mm TRS
• Power requirement,12–15 VDC; current value corrupted in source
• Receiver output,3.5 mm headphone
• Minimum load,16 Ω
• Receiver dynamic range,110 dB+A
• Receiver sensitivity,<-95 dB as published; likely dBm
• Receiver antenna,SMA
• Battery runtime,3–4 hours
• Temperature,Transmitter -30°C to 58°C; receiver -30°C to 85°C stated

Product Overview

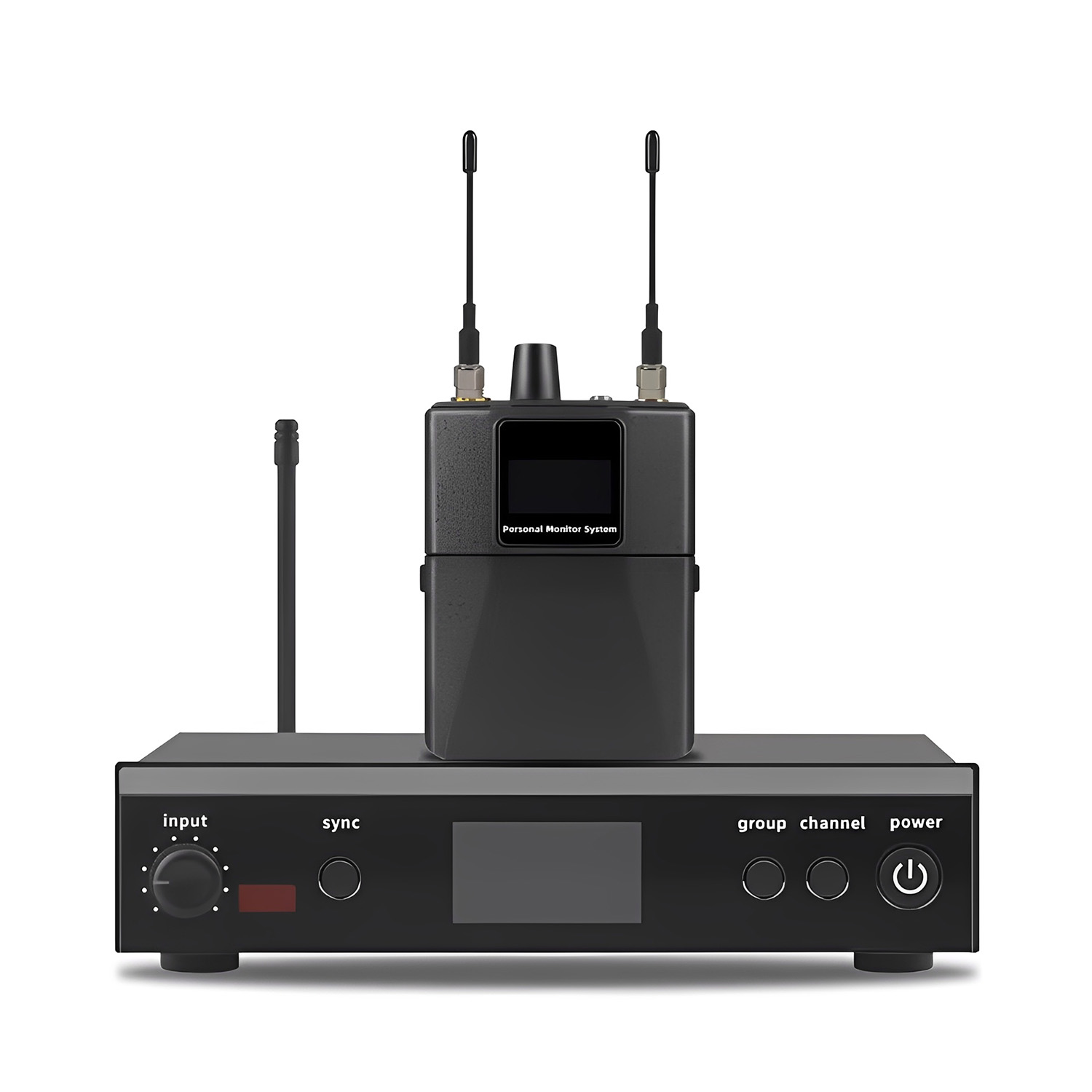

PSM300 is a digitally modulated wireless monitoring system with DSP processing, manual/infrared tuning and a published 566–590 MHz carrier range. The source contains several corrupted units that require confirmation.

Published Specifications

Applications and Buyer Fit

For compatible stage, rehearsal, event and monitoring systems. Confirm legal frequency band for the destination market, system package, receiver quantity, earphones, antennas, power supply and rack accessories.

ASK ABOUT DISTRIBUTOR TERMS →

Wholesale and Project Support

Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.

Frequently Asked Questions

What band is published?
566–590 MHz, subject to confirmation and local regulations.

What audio format is used?
24 bit at 46.875 kHz.

How long does the receiver run?
3–4 hours is stated, depending on battery and headphone power.

Why is datasheet confirmation important?
Several current-source units and values are corrupted or incomplete.
