Product Description
Technical Specifications:

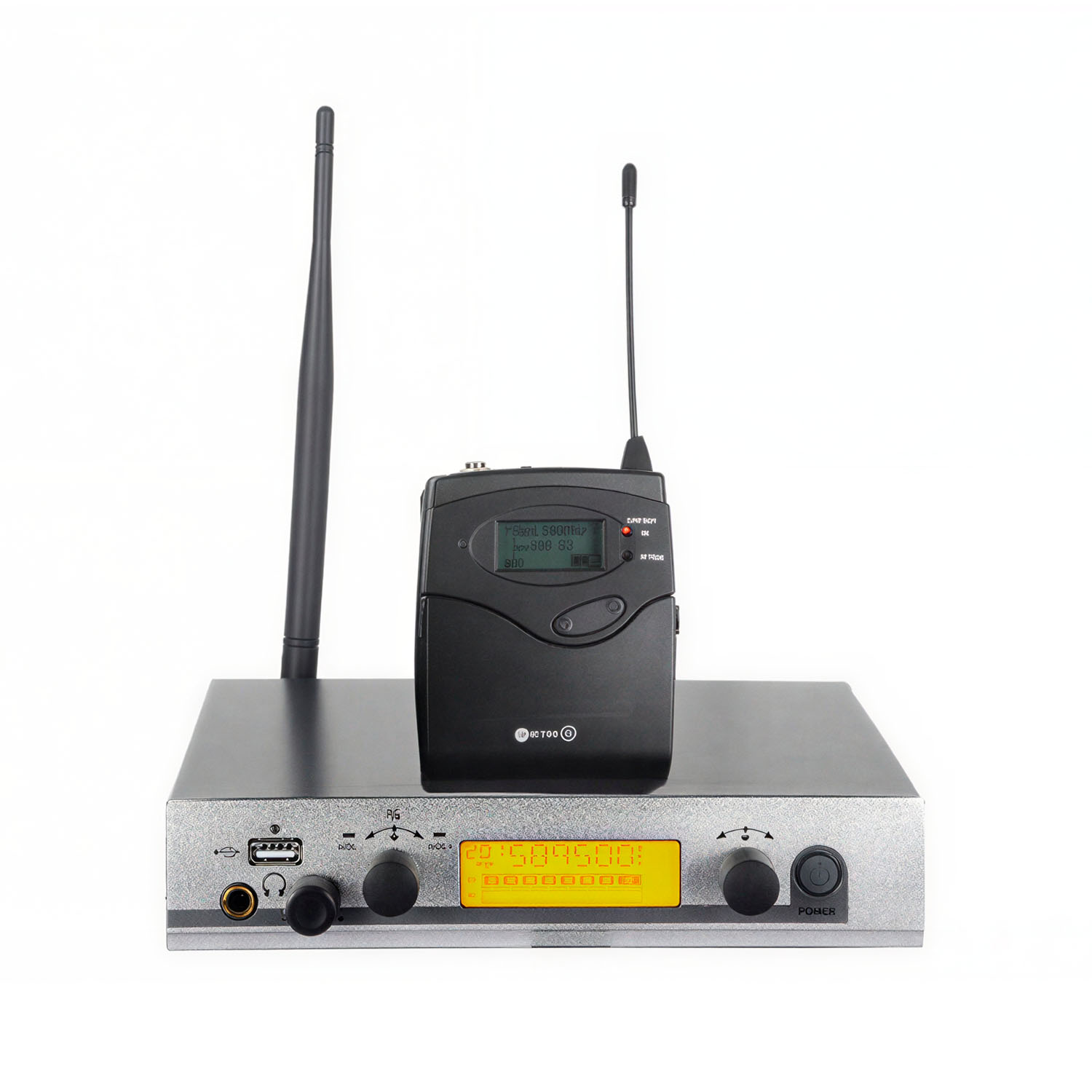

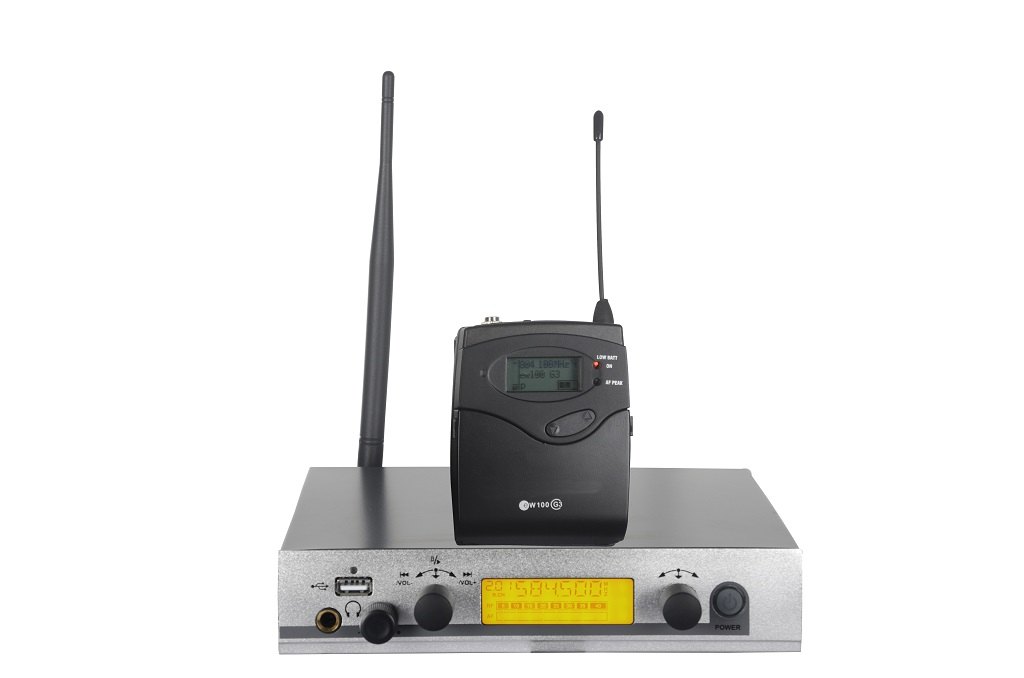

Transmitter: Ear-monitor transmitter
Main body regulation: 0.5 U
Group amount: 1 groups
Receiver's material: metal main body and panel
Oscillation mode: PLL synthesized
Frequency stability: ±0.005%
Frequency range: UHF614~830MHz
Frequency altemation: 32MHz
Operate mode: manual adjusting
Receiving way: single tuning
Sensitivity: Deviation 25KHz, when connected 7dBuV, S/N>78dB
Max Deviation:±48KHz
Frequency response: 50Hz~15KHz±3dB
Transmitter output power: 100mW
AF input: XLR, 6.3mmφjack
Earphone output: 6.3mmφstereophonic socket
Current consumption: DC 12V/250mA
Antenna socket: BNC socket
