Product Description
AM300 Stereo one channel Wireless In-Ear Monitor System with Bluetooth
Product Highlights:

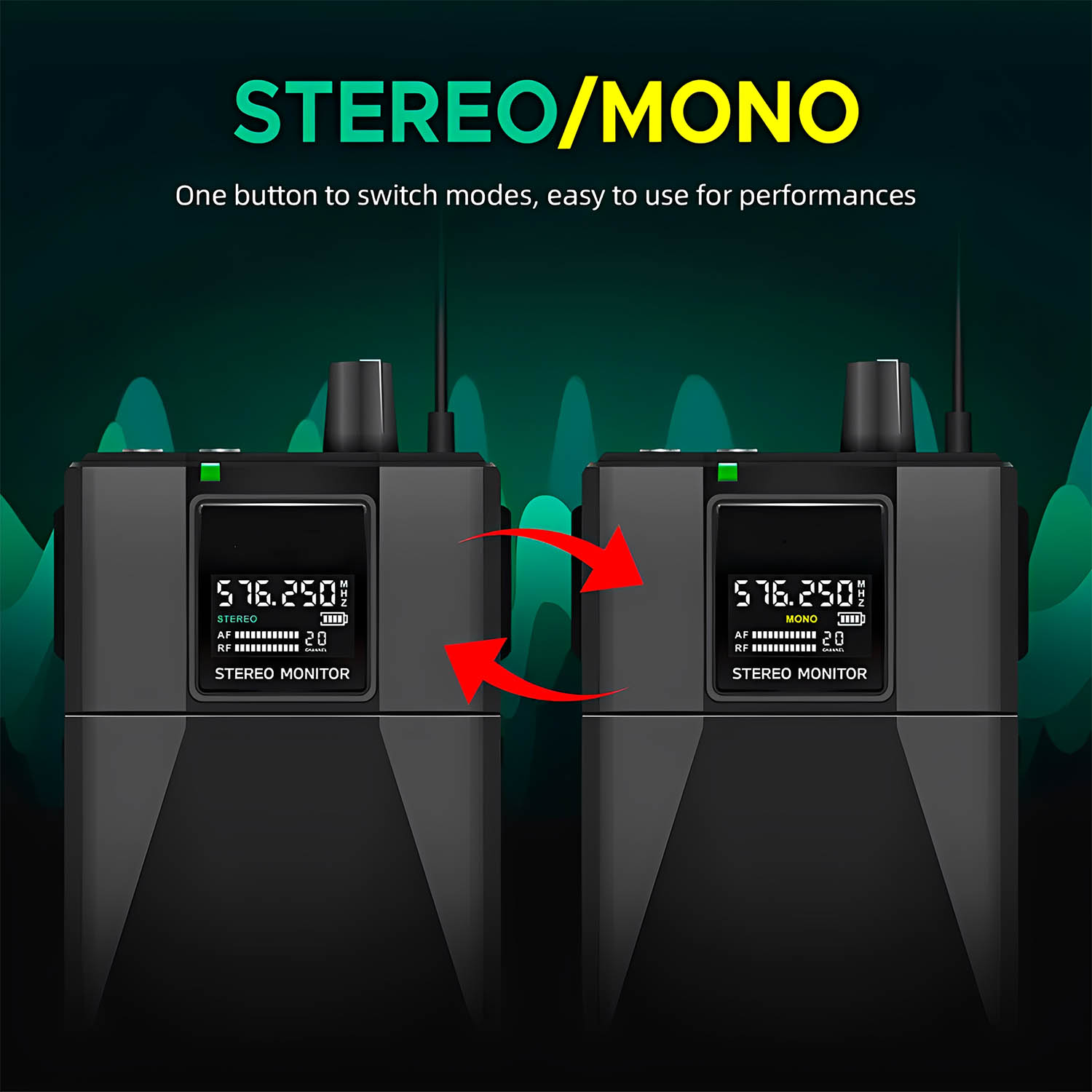

1. Experience true stereo wireless in-ear monitoring with seamless mono switching.
2. Enjoy Bluetooth 5.0 for lossless music transmission, ensuring high-fidelity sound reproduction.
3. Benefit from a high-performance digital chip that delivers ultra-low background noise and exceptional sound clarity.
4. Utilize UHF transmission technology for a reliable signal range of up to 80 meters, extendable to an impressive 300 meters in open environments.
AM300 Overview:
The AM300 is DGNOG Audio's latest innovation in professional stereo wireless in-ear monitoring systems. Developed over two years, this system features a cutting-edge digital chip and UHF signal transmission for enhanced efficiency and stability. With a focus on crystal-clear sound and minimal white noise, the AM300 is ideal for various applications, including high-end recording studios. Its versatile design includes a mono-stereo switch for adaptable use across different scenarios.
Key Features:
1. True stereo wireless monitoring with mono switching capability.
2. Bluetooth 5.0 enables lossless music transmission for superior audio playback convenience.
3. High-performance digital chip ensures high-fidelity sound reproduction and minimal background noise.
4. UHF transmission technology offers a reliable signal range of up to 80 meters, extendable to 300 meters in open environments.
5. Transmitter features a multifunctional LCD digital display for easy operation.
6. Portable and lightweight receiver equipped with two output interfaces (3.5mm).
7. Multiple input modes (XLR/6.35mm/3.5mm) for versatile connectivity options.
Technical Specifications:
- Carrier Frequency Range: 530~580MHz/640~690MHz
- Audio Sampling Depth: 24bit, 44.1kHz
- Signal Delay: 0.3ms
- Wireless Channels: 100
- Modulation Method: GFSK
- Audio Frequency Response: 20~18000 Hz
- Comprehensive T.H.D.: <0.1%
- Separation: 75dB
- Audio SNR: 85dB
- Dynamic Range: 95dB
- Effective Use Distance: 80 meters (open environment)
Transmitter Technical Parameters:
- Frequency Error: <=10ppm
- Transmission Power: 10mW
- Current Consumption: 160mA
- Power Supply: 12V 500mA
- Audio Input: 3.5mm/6.5mm/XLR
Receiver Technical Parameters:
- Frequency Error: <=10ppm
- Receiving Sensitivity: <-95dBm
- Power Supply: 2xAA Batteries
- Current Consumption: 130mA
- Audio Output: 1 stereo headphone output, 1 audio output
