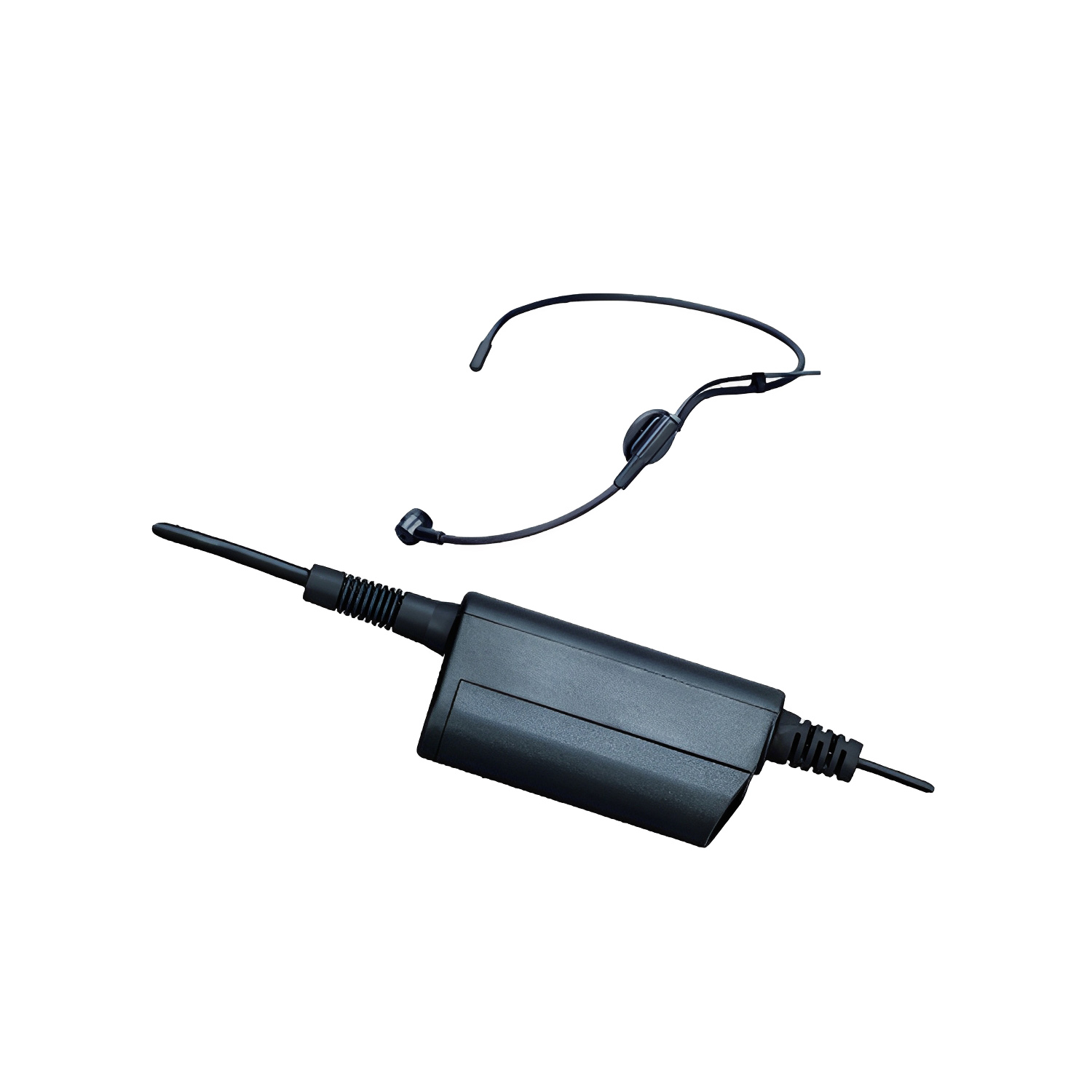

HY-701B Power Supply Head Mounted Microphone
HY-701B is a unidirectional powered head-mounted microphone with 9.7 × 5.05 mm capsule, 5 m cable and DC 1–10 V operation.
SKU:J20044
PROFESSIONAL AUDIO · B2B SOURCING
HY-701B is a powered head-mounted microphone with unidirectional pickup and a 9.7 × 5.05 mm capsule. Its 5 m cable supports compatible installed or body-worn voice applications when connector and voltage are matched.
HY-701B is a powered head-mounted microphone with unidirectional pickup and a 9.7 × 5.05 mm capsule. Its 5 m cable supports compatible installed or body-worn voice applications when connector and voltage are matched.
| Model | HY-701B |
| Product type | Head-Mounted microphone |
| Pickup direction | Unidirectional |
| Capsule size | 9.7 × 5.05 mm |
| Sensitivity | -38 ± 1 dB |
| Frequency response | 100 Hz–10 kHz |
| Output impedance | ≤680 Ω / ≤2.2 kΩ, as stated |
| Working voltage | DC 1–10 V |
| Signal-to-noise ratio | >58 dB |
| Cable length | 5.0 m |
| Connector | Not stated |
| SKU | J20044 |
Relevant to compatible conference, presentation and voice systems. Confirm connector, wiring, working voltage and target input.
Contact ELEGAUDIO for pricing, quantities, availability, packing details and project requirements. Include destination market, quantity and intended application.
What pickup direction is used?
Unidirectional.
How long is the cable?
5.0 m.
What voltage is required?
DC 1–10 V.
Is connector information published?
No. Confirm connector and pin wiring.
