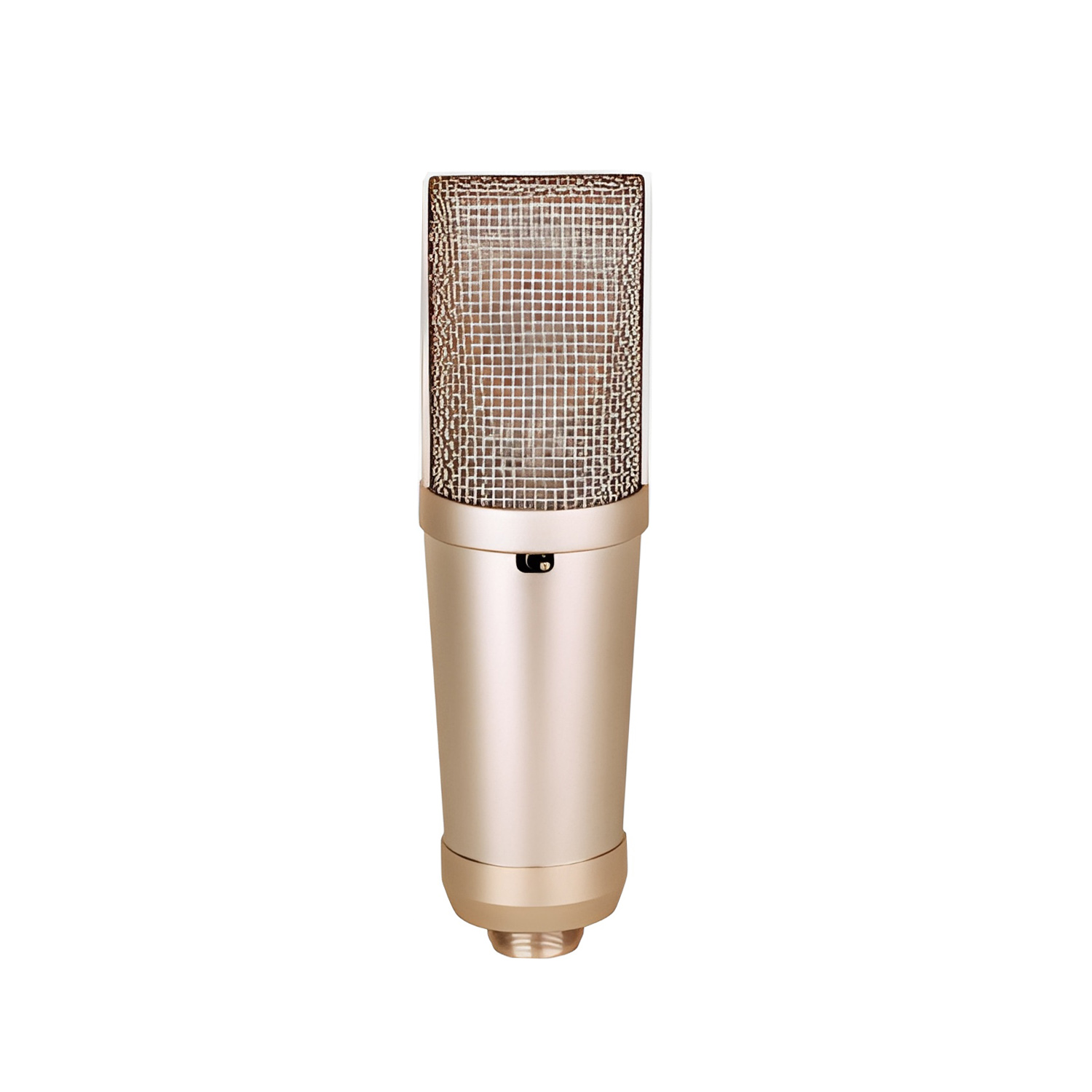

LARGE-DIAPHRAGM CONDENSER · SWITCHABLE PICKUP OPTIONS
Multi-pattern gold-plated Mylar diaphragm, transformerless transistor output, balanced connection, high sensitivity and low-noise wide-response design.
| Model / SKU | DB-5000 / F50006 |
|---|---|
| Pickup Options | Switchable cardioid and figure-8 patterns described |
| Sensitivity | 25 mV/Pa (-32 dB ±2 dB) |
| Frequency Range | 30 Hz–20 kHz |
| Electrical Impedance | ≤200Ω |
| Bass Switching | 6 dB/octave below 500 Hz |
| Attenuation | Not stated |
| Equivalent Noise | 13 dB (A-weighted) |
| Signal-to-Noise Ratio | ≥96 dB |
| Maximum SPL | 130 dB at 1 kHz, distortion ≤1% |
| Power | 48V phantom power |
| Dimensions | Ø51 × 170 mm |
Studio recording · Vocal recording · Instrument capture · Stage performance · Broadcast · Compatible professional sound systems
ELEGAUDIO supports distributors, importers, studios and project buyers. Send quantity, market and source application for compatibility and quotation details.
Switchable cardioid and figure-8 patterns described.
A 6 dB/octave bass switch below 500 Hz is stated.
The product uses 48V phantom power.
Send your quantity, destination country and recording application.
REQUEST A QUOTE
