SUPERCARDIOID CONDENSER · CHORUS AND PROFESSIONAL RECORDING
The BT-168 condenser microphone combines 20 Hz–20 kHz response, supercardioid pickup, balanced output, a -10 dB pad and low-frequency attenuation for broadcasting, professional recording, chorus and live performance.
| Model / SKU | BT-168 / F50017 |
|---|---|
| Transducer | Condenser |
| Directivity | Supercardioid |
| Frequency Response | 20 Hz–20 kHz |
| Output Impedance | 75Ω |
| Sensitivity | -40 dB ±2 dB |
| Signal-to-Noise Ratio | 77 dB at 1 kHz / 1 Pa |
| Dynamic Range | 125 dB |
| Maximum SPL | 132 dB SPL at 1 kHz, THD 1% |
| Power | 48V phantom; optional 1.5V battery cartridge described |
| Dimensions / Weight | Ø28–32 × 170 mm / 0.11 kg |
| Cable | 10 m balanced cable stated |
Chorus · Broadcasting · Professional recording · Live performance · Studio speech · Compatible stage and production systems
ELEGAUDIO supports distributors, importers, studios, rental companies and project buyers. Send your quantity, destination market and intended application for applicable package and quotation information.
Yes. A -10 dB sensitivity-attenuation switch is described.
48V phantom power is stated; an optional 1.5V battery cartridge is also described.

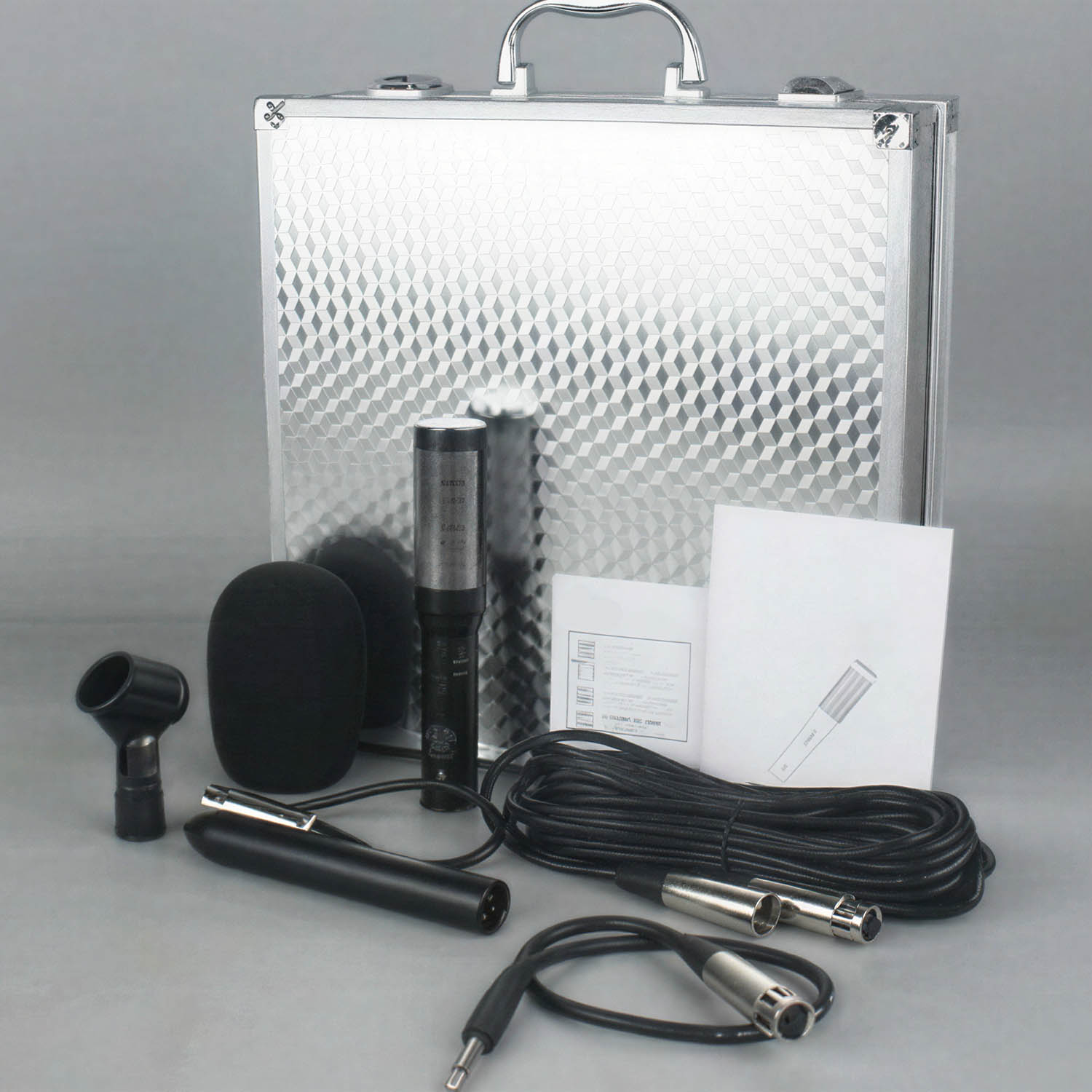

The supplied information lists the microphone, cable, windscreen, manual, certificate, warranty card, conversion plug, 1.5V power supply and 10 m balanced line.
Send your quantity, destination country and chorus or recording application.
