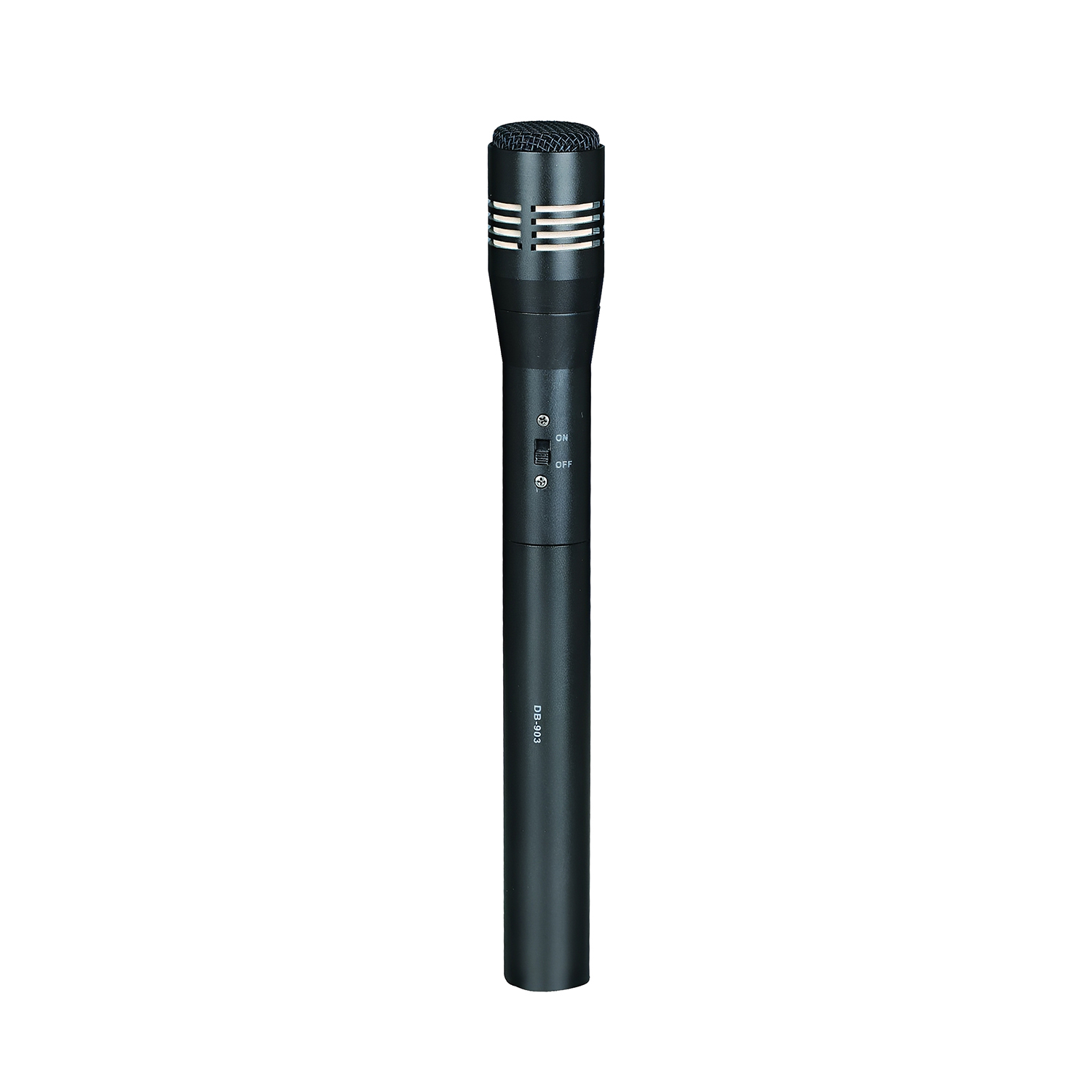

DB-903 Backplate Condenser Microphone
Single-direction pickup, low noise, low distortion and broadband response for instruments, recording studios and outdoor performance.
SKU:F50016
CONDENSER PICKUP · RECORDING AND LIVE AUDIO
Single-direction pickup, low noise, low distortion and broadband response for instruments, recording studios and outdoor performance.
The DB-903 combines cardioid pickup, 40 Hz–20 kHz response and balanced professional-audio positioning. Confirm power and connection compatibility with the intended system before ordering.
| Model / SKU | DB-903 / F50016 |
|---|---|
| Product Type | Backplate condenser microphone |
| Directivity | Cardioid |
| Sensitivity | 13 mV/Pa (-32 dB ±2 dB) |
| Frequency Range | 40 Hz–20 kHz |
| Output Impedance | <200Ω |
| Equivalent Noise | 13 dB (A-weighted) |
| Signal-to-Noise Ratio | >96 dB |
| Maximum SPL | 127 dB at 1 kHz, distortion <1% |
| Power | 48V phantom power / DC 1.5V |
| Dimensions | Ø30 × 215 mm |
Recording studios · Live performance · Instrument pickup · Speech · Content production · Compatible professional audio systems
ELEGAUDIO supports distributors, importers, studios, rental companies and project buyers. Send your quantity, destination market and intended application for applicable compatibility and quotation information.
The DB-903 uses a cardioid pattern.
The supplied specification lists 48V phantom power / DC 1.5V.
The stated range is 40 Hz–20 kHz.
Send your quantity, destination country and intended audio application.
